Remove/Install Front Door Side Window - AR72.10-P-1961SRA
MODEL 453.3/4

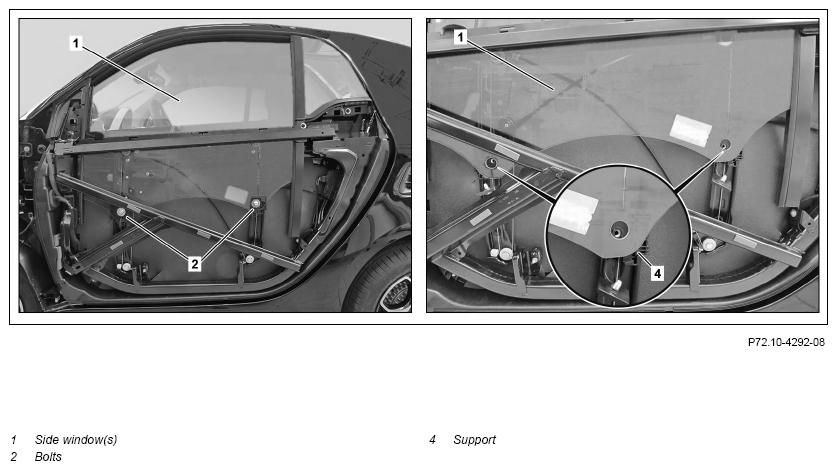

Shown on left side of vehicle on Model 453.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Open side window (1) half way | ||
| 2 | Switch off ignition and remove key | ||
| 3 | Remove door paneling | AR72.18-P-1000SRA | |
| 4 | Secure side window (1) against falling down | ||
| 5 | Unscrew screws/bolts (2) | ||
| 6 | Remove side window (1) upward from window channel in front door | ||
| Install | |||
| 7 | Insert side window (1) | ||
| 8 | Push side window (1) downward until it makes contact with mounts (4), simultaneously slide side window (1) to end stop into rear window guide seal | ||
| 9 | Tighten bolts (2) | ||
| 10 | Install door paneling | AR72.18-P-1000SRA | |
| Check | |||
| 11 | Check whether side window (1) runs up and down correctly and check power window for proper function |
