Remove/Install Guide Tube For Drive Cable - AR77.30-P-1112SRC
MODEL 453.4
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove/install | |||
| 1 | Remove folding roof | AR77.30-P-1100MCO | |
| 2 | Remove folding roof drive cable | AR77.30-P-1104MCO | |
| 3 | Open liftgate | ||
| 4 | Fold up retainer (2) | ||

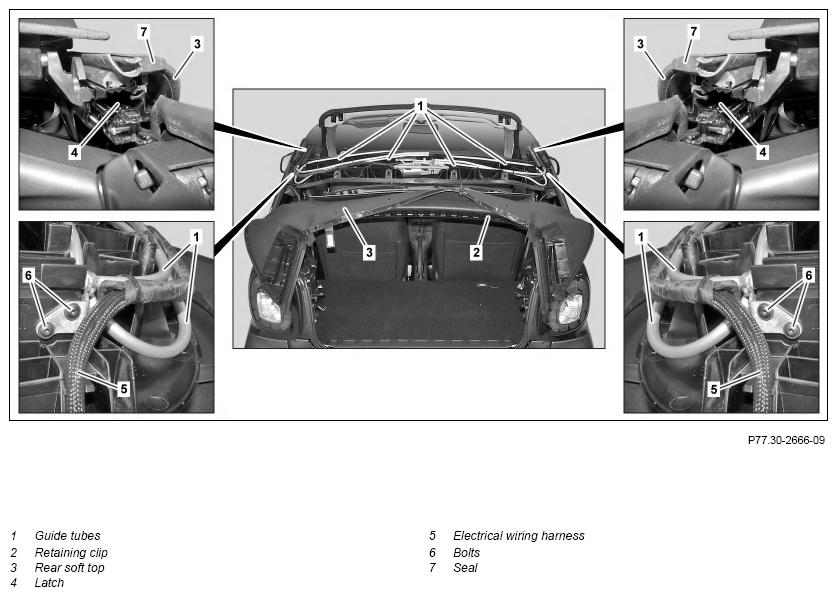

| 5 | Detach rear soft top (3) from latches (4) and position as shown | Do not remove seals (7) from rear soft top (3). Otherwise the sealing compound must be replaced. |
AR77.30-P-1150SRC |
| 6 | Detach electrical wiring harness (5) from guide tubes (1) | ||
| 7 | Remove bolts (6) | ||
| 8 | Remove guide tube (1) | ||
| 9 | Install in the reverse order |
