Remove/Install Cover Below Instrument Panel (Left) - AR68.10-P-1500SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212 °F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Move driver seat towards the rear
2	Disconnect ground line for on-board electrical system battery (G1)		AR54.10-P-0003SR

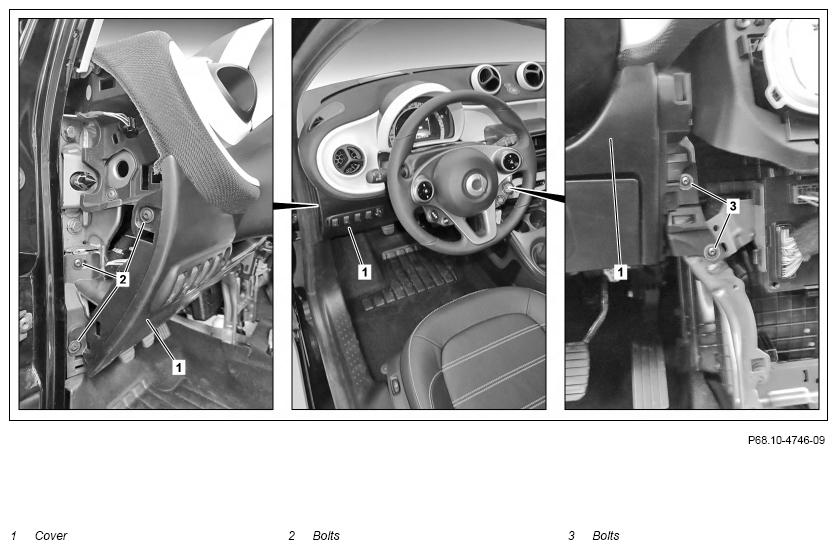

3	Remove side paneling from instrument panel and unscrew bolts (2)	Bolt, bracket for kneebag to cross member	*BA91.60-P-1012-01C
4	Remove panel at bottom for center instrument panel		AR68.10-P-1498SR
5	Unscrew bolts (3) and unclip cover (1) from instrument panel	Do not tension electrical connectors (4, 5). Otherwise the electrical connectors (4, 5) can be damaged. Secure driver kneebag against falling down. : Check retaining clips for damage. Bolt, bracket for kneebag to cross member If complaint present ↓ Replace retaining clips	*BA91.60-P-1012-01C

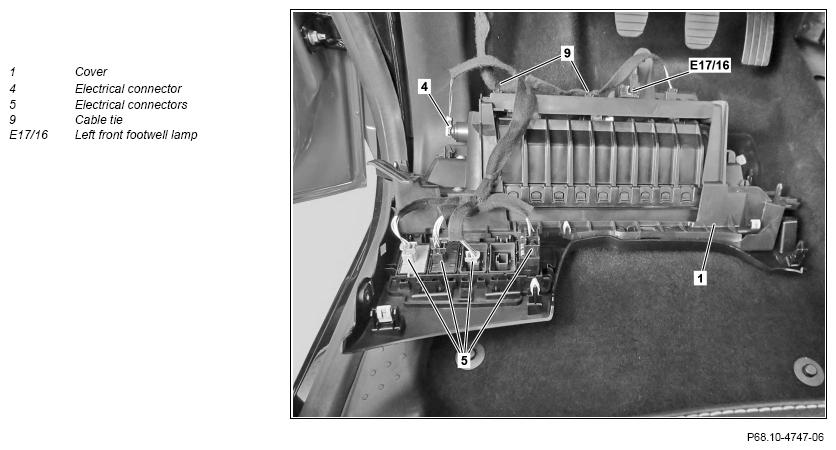

6	Unclip cable tie (9)	Clip remover	Figure
7	Disconnect electrical connection (4)
8	Disconnect electrical connections (5)	The number of electrical connectors (5) varies depending on the vehicle equipment.
9	Remove cover (1) from vehicle
10	Remove left front footwell (E17/16) from cover (1)	When replacing cover (1).
11	Install in the reverse order

AIRBAG

Number	Designation		Model 453.0	Model 453.3/4
BA91.60-P-1012-01C	Bolt, bracket for kneebag to cross member	Nm	4	4

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
