Remove/Install Front Bumper - AR88.20-P-2000SRA
MODEL 453.3/4
Shown on model 453.3 with code V07 (Front fog lamp (FFO))
Shown with code 258 (Active Brake Assist)
| Remove/install | |||
| 1 | Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Lift vehicle with vehicle lift |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |

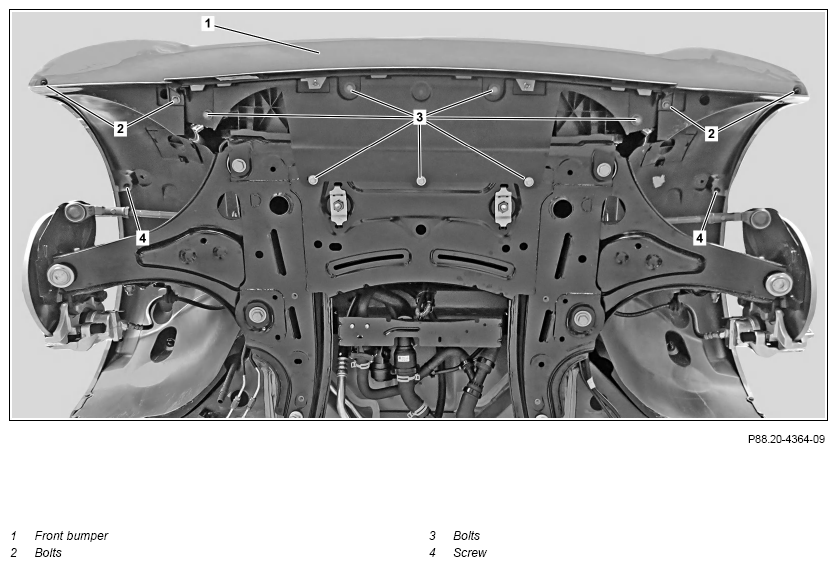

| 2 | Unscrew bolts (2) | ||
| 3 | Remove bolts (3) | ||
| 4 | Remove bolt s (4) | ||

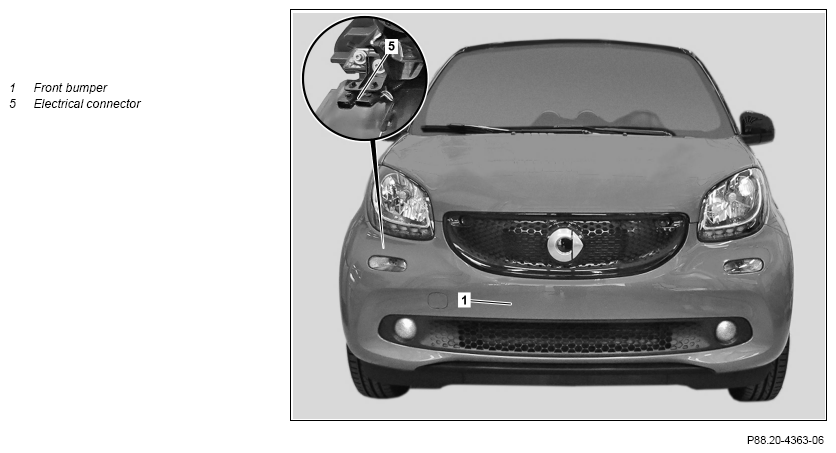

| 5 | Press fender liner to side so that electrical connector (5) can be accessed | ||
| 6 | Disconnect electrical connection (5) | ||

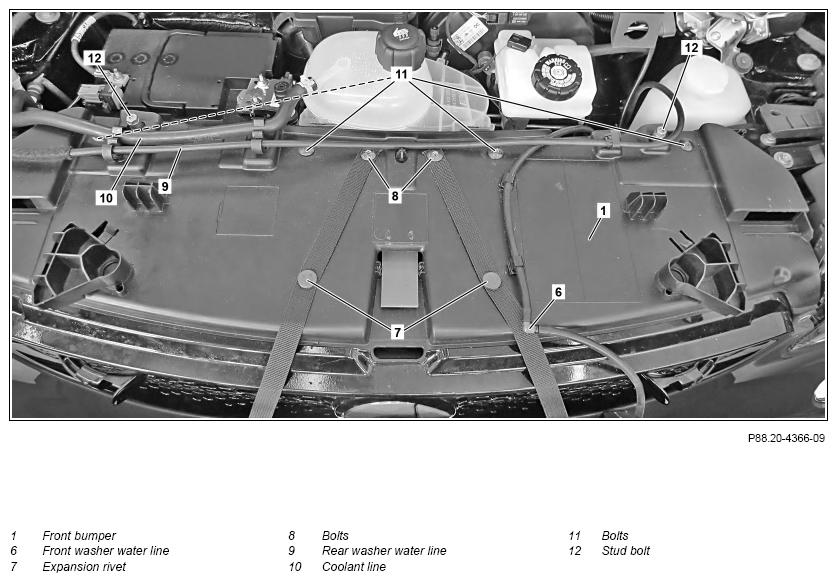

| 7 | Open maintenance flap | ||
| 8 | Unclip front washer fluid line (6) and disconnect | ||
| 9 | Remove expansion rivets (7) | Figure | |
| 10 | Unscrew bolts (8) and remove maintenance flap | ||
| 11 | Unclip rear washer water line (9) | ||
| 12 | Unclip coolant line (10) | ||
| 13 | Remove bolts (11) | ||
| 14 | Unclip front bumper (1) from fenders, lift over stud bolts (12) and remove with aid of helper | ||
| 15 | Install in the reverse order | ||
| Check | |||
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||

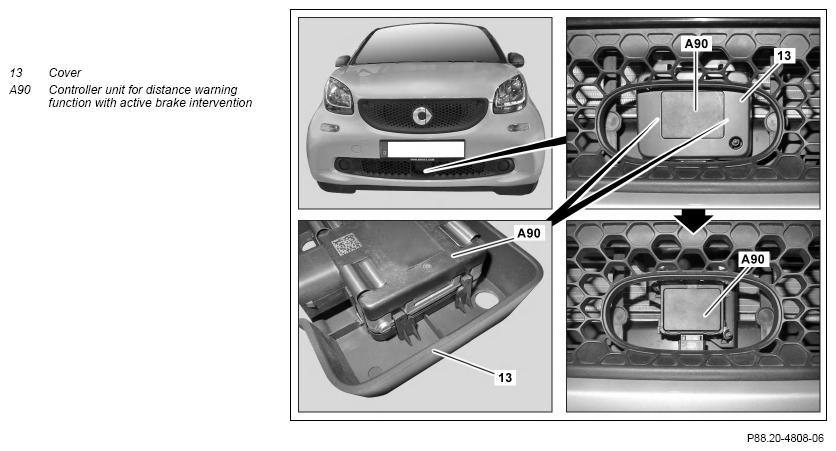

| 16 | Unclip cover (13), slightly pull front bumper (1) above cover (13) toward front and remove cover (13) | Model 453.3/4 with code 258 (Active Brake Assist System) |
|
| 17 | Check/adjust alignment of control unit for distance warning function with active brake application (A90) | Model 453.3/4 with code 258 (Active Brake Assist System) |
AR30.30-P-0017-01SR |
| Fig 2 | |||
| 18 | Slightly pull front bumper (1) above control unit for distance warning function with active brake application (A90) toward front and clip in cover (13) | Model 453.3/4 with code 258 (Active Brake Assist System) |
|
| 19 |
Perform calibration drive with vehicle diagnosis system | Model 453.3/4 with code 258 (Active Brake Assist System) if alignment of control unit for distance warning function with active brake application (A90) has been set. |
AD00.00-P-2000-06SR |
