Remove/Install Rain/Light Sensor - AR82.30-P-7800SR

MODEL 453

with CODE V54 (Rain/light sensor)

Courtesy of MERCEDES-BENZ USA

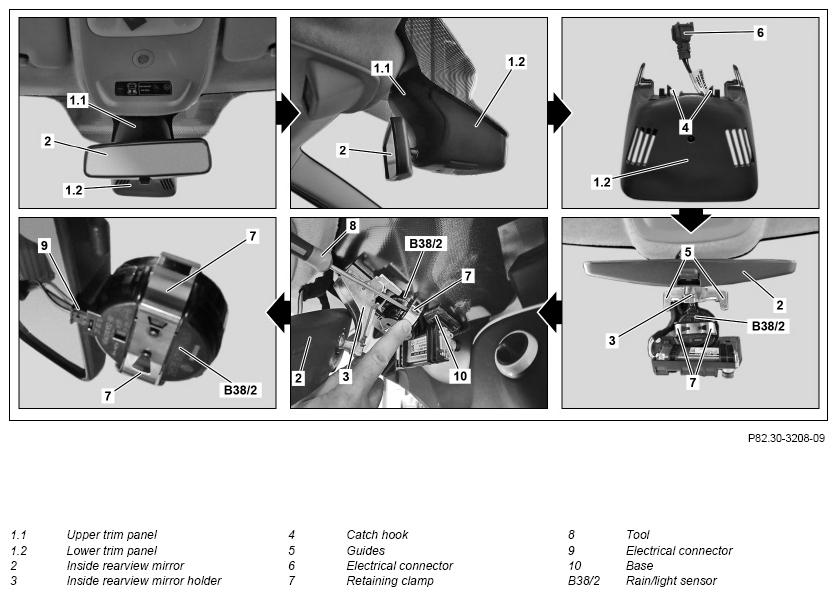

Shown on Model 453.0 with CODE 238 (Lane Keeping Assist)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove key
2	Detach lower paneling (1.2) behind inside rearview mirror (2) from inside rearview mirror holder (3)	: Slide lower paneling (1.2) into guides (5) at inside rearview mirror holder (3) and clip catch hook (4) into position.
3	Rotate upper paneling (1.1) behind inside rearview mirror (2) to the side and remove upper paneling (1.1)
4	Disconnect electrical connector (6) and remove lower paneling (1.2)
5	Unclip retaining clip (7) at both sides of the rain/light sensor (B38/2) using a suitable tool (8) at the base (10) and remove rain/light sensor (B38/2) until electrical connector (9) is accessible
6	Disconnect electrical connector (9) of rain/light sensor (B38/2) and remove rain/light sensor (B38/2)
7	Install in the reverse order
8	Connect diagnostic unit, read out fault memory		AD00.00-P-2000-06SR
