Remove/Install Multimedia Connection Unit In Rear Stowage Compartment - AR82.60-P-1033SR
MODEL 453
with CODE 535 (smart Media system)
MODEL 453
with CODE 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND)
MODEL 453
with code 557 (RADIO 57A MM2012 without DAB)
MODEL 453
with CODE 558 (smart Media system with DAB)
MODIFICATION NOTES
| 04.08.2016 | Document revised with regard to armrest on center console. |
Shown on Model 453.0 except code J59
(Center armrest)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Move driver seat towards the front | ||
| 3 | Fold backrest of driver's seat forward | Model 453.3/4 with code 535 (smart Media system) Model 453.3/4 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) Model 453.3/4 with code 557 (RADIO 57A MM2012 without DAB) Model 453.3/4 with code 558 (smart Media system with DAB) |
|

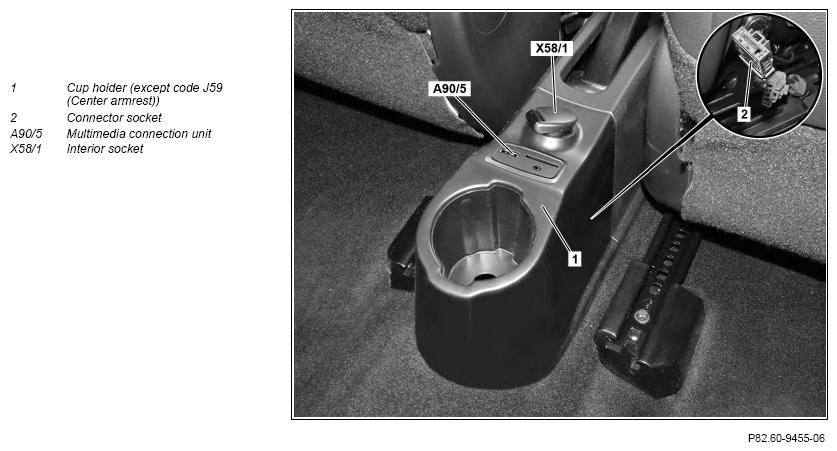

| 4.1 | Remove screw/bolt of cup holder (1) and unclip cup holder (1) upwards | Model 453 with code 535 (smart Media system) except code J59 (Center armrest) Model 453 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) except code J59 (Center armrest) Model 453 with code 557 (RADIO 57A MM2012 without DAB) except code J59 (Center armrest) Model 453 with code 558 (smart Media system with DAB) except code J59 (Center armrest) |
|
| 4.2 | Remove armrest from center console and place to one side with connected lines | Model 453 with code 535 (smart Media system) with code J59 (Center armrest) Model 453 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) with code J59 (Center armrest) Model 453 with code 557 (RADIO 57A MM2012 without DAB) with code J59 (Center armrest) Model 453 with code 558 (smart Media system with DAB) with code J59 (Center armrest) |
AR68.20-P-2026SR |
| 5 | Disconnect connector socket (2) from interior socket (X58/1) | ||
| 6 | Disconnect electrical connector from multimedia connection unit (A90/5) | ||
| 7 | Unclip and remove multimedia connection unit (A90/5) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check multimedia connection unit (A90/5) for proper operation |
