Calibrate Multifunction Camera - AR54.21-P-3002SR
MODEL 453 with CODE 238 (Active lane keeping Assist)
| Check | |||
| 1 | Check tire pressure and correct if necessary | ||
| AP40.15-P-4061C | |||
| Clean | |||
| 2 | Clean windshield in area of multifunction camera | ||
| Preparation | |||
| 3 | Connect diagnostic unit and select vehicle using vehicle identification number (VIN) | ||
| AD00.00-P-2000-06SR | |||
| 4 | Select the multifunction camera control unit (A40/11) diagnostic unit | ||
| 5 | Mark longitudinal axis of vehicle on bumper at front | ||

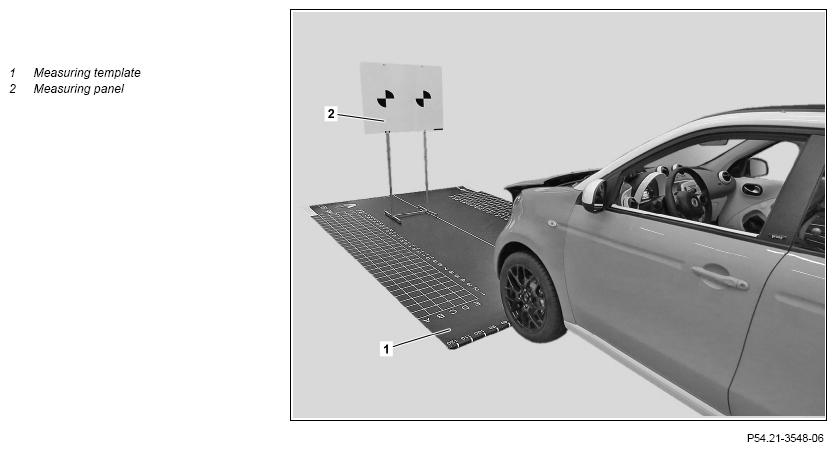

| 6 | Position measuring template (1) in front of vehicle, as shown | The center line of the measuring template (1) and the vehicle's longitudinal axis must line up, and the wheels must make contact with the measuring template (1). Wrong measurements can occur otherwise. |
|
| 7 | Position measuring panel (2) on measuring template (1) | ||
| 8 | Continue work by following the diagnostic unit's instructions |
