Remove/Install Headlamp Range Control - AR82.10-P-4000SR
MODEL 453
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

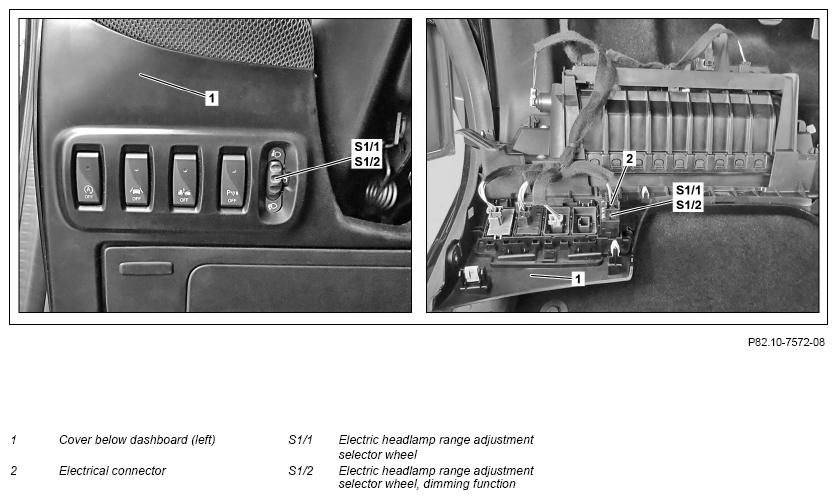

| 1 | Detach cover under instrument panel (left) (1) with connected electrical connectors and place into footwell | Do not place electrical connectors under any tension. Otherwise the electrical connectors may be damaged. |
AR68.10-P-1500SR |
| 2 | Disconnect electrical connection (2) | ||
| 3 | Unclip selector wheel for electric headlamp range adjustment (S1/1) or selector wheel for electric headlamp range adjustment, dimmer function (S1/2) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check operation of headlamp range adjustment |
