Remove/Install Electric Motor Charging Cable To 12 Volt Battery - AR54.10-P-5115SRE

MODEL 453.091/391/491

Shown on model 453.391

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove high-voltage battery		AR54.10-P-1140SRE
2	Detach charging cable (1) from 12-V battery		AR54.10-P-0005SR

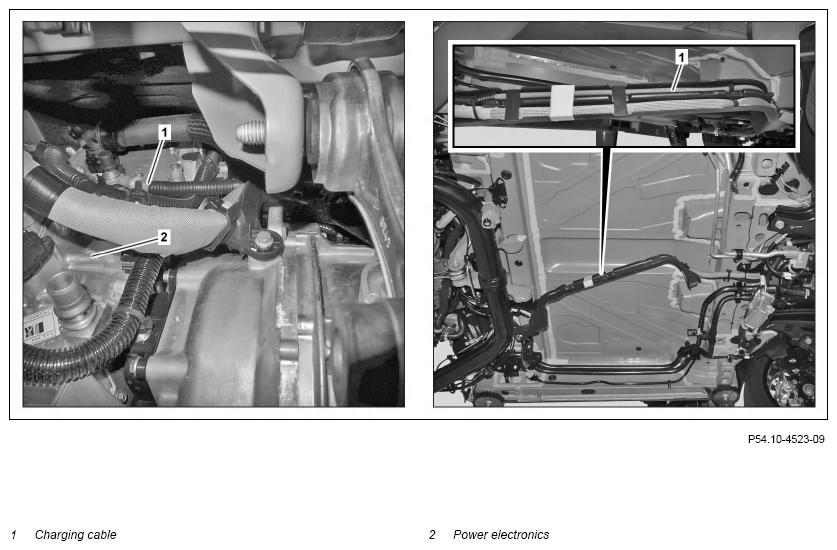

3	Detach charging cable (1) at front side of power electronics (2)
4	Expose charging cable (1) over the entire course and remove	Observe assembly position of charging cable (1).
5	Install in the reverse order
