Remove/Install Battery - AR54.10-P-0005SR
MODEL 453
| Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte or due to short circuit. Risk of burn injuries due to thermal changes. Risk of poisoning from swallowing battery electrolyte. | Wear protective gloves, protective clothing and safety glasses. In the event of escaping battery electrolyte, battery vapors, battery mist, smoke or heat development, secure the area, leave it and alert the fire department. | AS54.10-Z-0001-04A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||

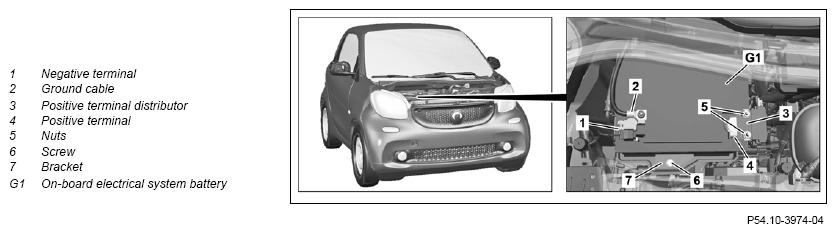

| 1 | Loosen negative terminal (1) with ground line (2) and remove from on-board electrical system battery (G1) | AR54.10-P-0003SR | |
| 2 | Remove positive terminal cover | ||
| 3 | Unscrew nuts (5) from positive terminal distributor (3) and place positive terminal distributor (3) to one side | ||
| 4 | Loosen positive terminal (4) and remove from on-board electrical system battery (G1) | *BA54.10-P-1007-01I | |
| 5 | Remove screw/bolt (6) and remove bracket (7) | *BA54.10-P-1001-01I | |
| 6 | Disconnect vent hose from on-board electrical system battery (G1) | ||
| 7 | Remove on-board electrical system battery (G1) | Pay attention to the ground line (2), positive terminal (4) with positive line and their detachable parts as well as the vent hose. Otherwise they may be damaged. Make sure that the vent hose is correctly seated. Otherwise leaking battery vapor may damage the vehicle. |
|
| 8 | Install in the reverse order | ||
| 9 | Reset clock |
BATTERY
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA54.10-P-1001-01I | Bolt, battery bracket to body | Nm | 21 |
BATTERY
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA54.10-P-1007-01I | Nut, battery cable to negative terminal/positive terminal of on-board electrical system battery | Nm | 8 |
