Remove/Install Turn Signal Lamps - AR82.10-P-4725SR
MODEL 453
| Remove/install | |||
| 1 | Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Lift vehicle on vehicle lift |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |
| 2 | Remove maintenance flap in fender liner | ||

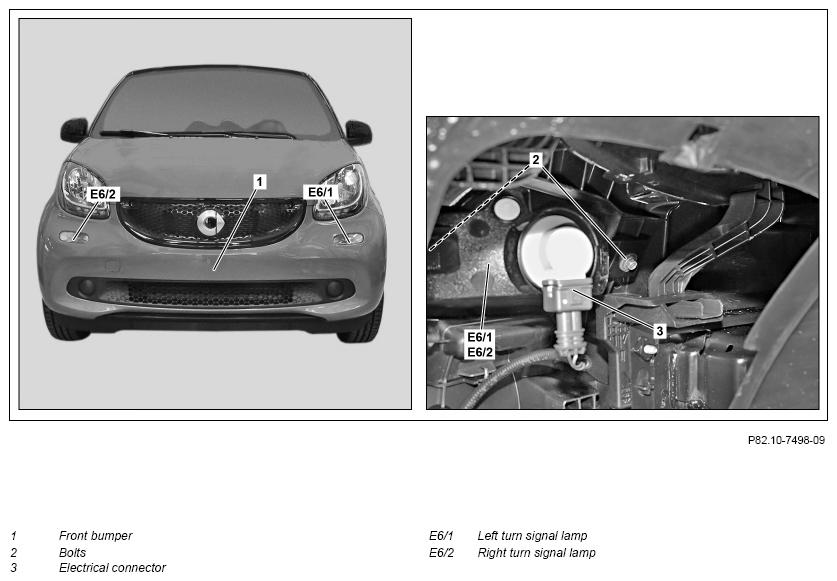

| 3 | Loosen front bumper (1) in area of fender liner | Model 453.0 | AR88.20-P-2000SR |
| Model 453.3/4 | AR88.20-P-2000SRA | ||
| 4 | Disconnect electrical connector (3) | ||
| 5 | Pull front bumper (1) forward and remove screws/bolts (2) | ||
| 6 | Remove left turn signal lamp (E6/1) or right turn signal lamp (E6/2) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check function of left turn signal lamp (E6/1) or right turn signal lamp (E6/2) |
