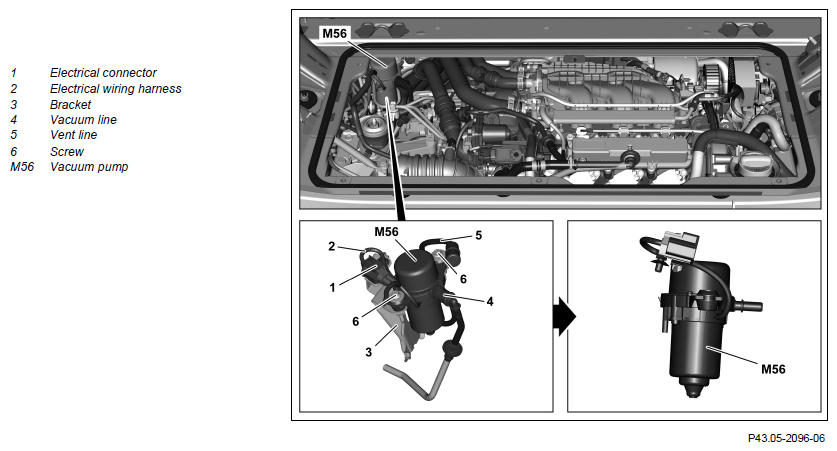

Remove/Install Vacuum Pump - AR43.05-P-1320SR
MODEL 453 with ENGINE 281
with CODE 494 (USA version)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove fan | AR20.40-P-5614SR | |
| 2 | Disconnect electrical connector (1) | ||
| 3 | Unclip electrical wiring harness (2) from holder (3) | ||
| 4 | Release and detach vacuum line (4) | ||
| 5 | Unclip vent line (5) from bracket (3) | ||
| 6 | Remove screws/bolts (6) | ||
| 7 | Remove vacuum pump (M56) | ||
| 8 | Detach vent line (5) from vacuum pump (M56) | When replacing vacuum pump (M56). | |
| 9 | Install in the reverse order |
