Remove/Install Fan - AR20.40-P-5614SR
ENGINE 281 in MODEL 453

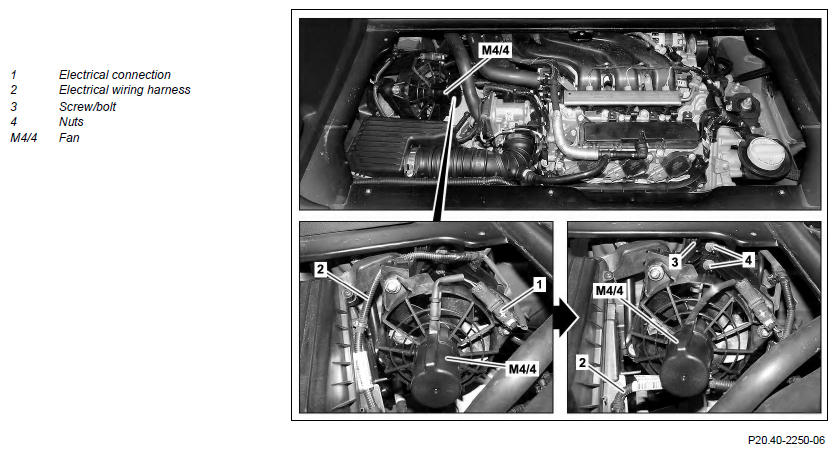

Shown on engine 281.920
| Remove/install | |||
| 1 | Remove covering over engine | ||
| 2 | Release and disconnect electrical connection (1) | ||
| 3 | Unclip electrical wiring harness (2) and remove from working area | ||
| 4 | Remove screw/bolt (3) | ||
| 5 | Unscrew nuts (4) | ||
| 6 | Remove fan (M4/4) | ||
| 7 | Install in the reverse order |
