Remove/Install Brake Booster - AR43.10-P-0350SR
MODEL 453
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of poisoning
from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove brake pedal | AR29.10-P-4597SR | |
| 2 | Remove windshield wiper system | AR82.30-P-6400SR | |
| 3 | Remove master brake cylinder (3) | AR42.10-P-0300SR | |

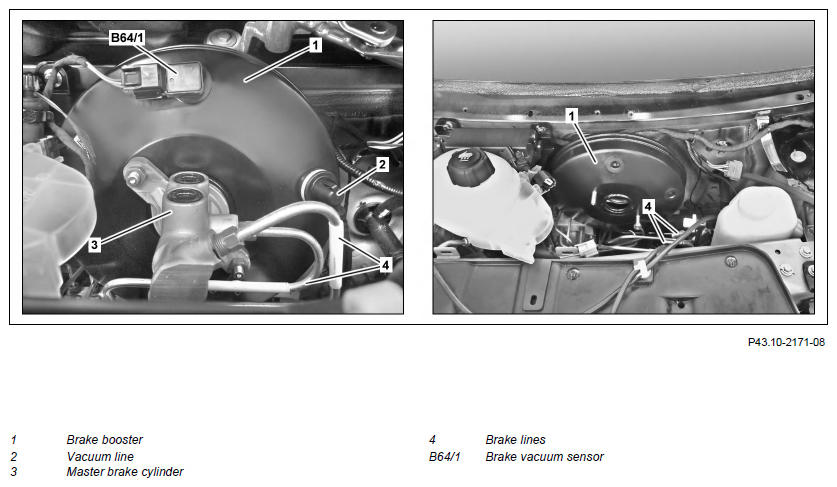

| 4 | Detach vacuum line (2) from brake booster (1) | ||
| 5 | Remove brake vacuum sensor (B64/1) | AR43.10-P-0352SR | |

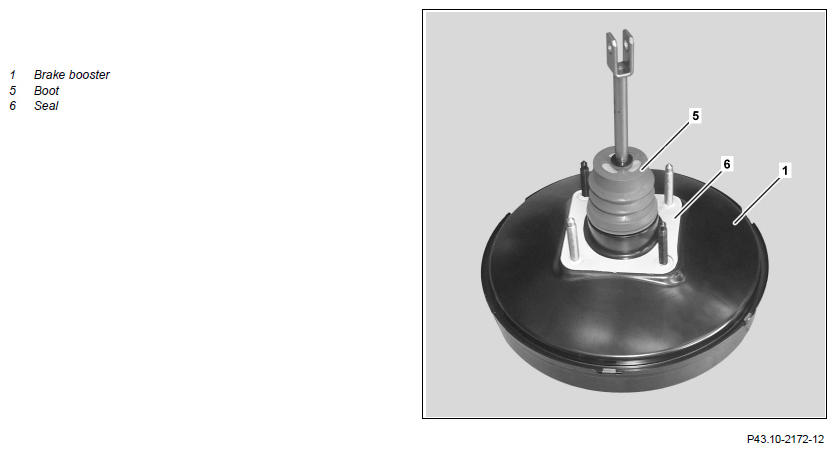

| 6 | Tilt brake booster (1) and extend upward | Do not damage the boot (5) on the brake booster (1). The brake booster (1) will otherwise have to be replaced. Push the brake lines (4) carefully to one side without deforming them. Otherwise these must be replaced. |
|
| 7 | Remove seal (6) | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Start engine and depress brake pedal several times | ||
| 10 | Turn off engine | ||
| 11 | Check brake booster (1) for leaktightness |
