Remove/Install Left/Right Rear Axle RPM Sensor - AR42.40-P-9807SR
MODEL 453
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Lift vehicle on vehicle lift | ||

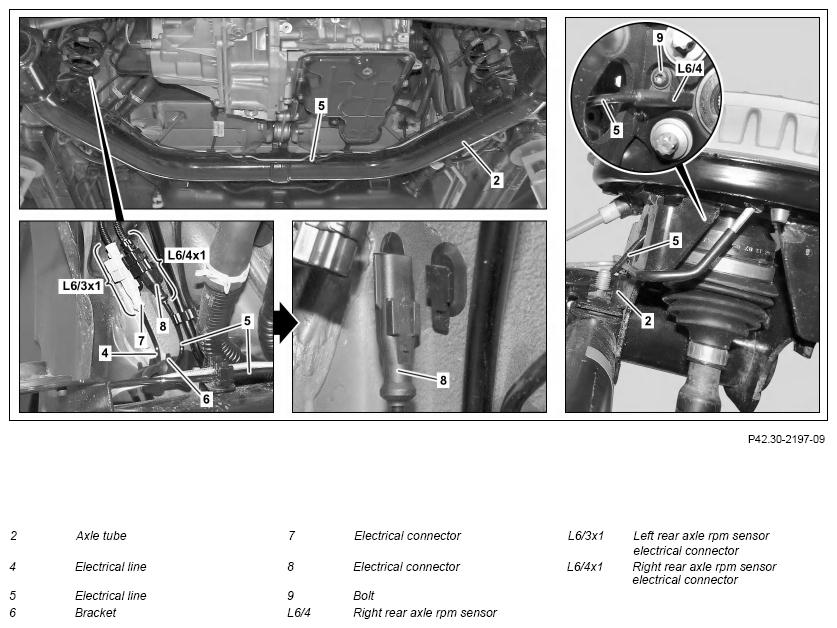

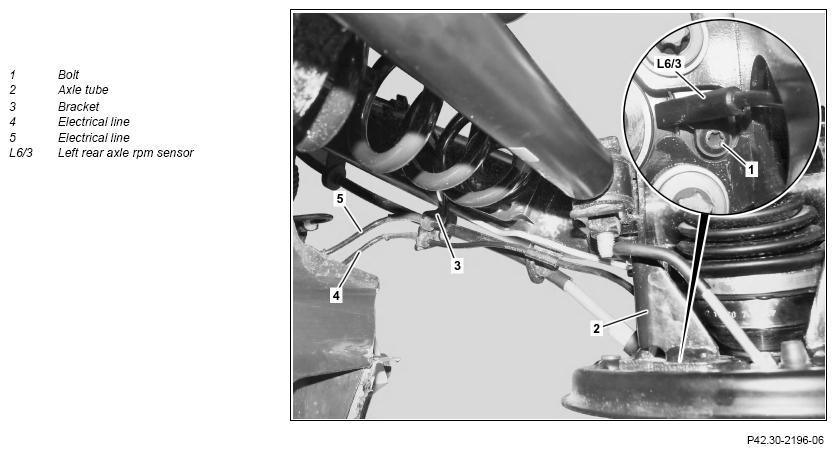

| 3 | Unscrew bolt (1) of left rear axle rpm sensor (L6/3) or bolt (9) of right rear axle rpm sensor (L6/4) | *BA42.30-P-1001-02L | |
| 4 | Pull out left rear axle rpm sensor (L6/3) or right rear axle rpm sensor (L6/4) | ||
| 5 | Remove left rear axle rpm sensor (L6/3) or right rear axle rpm sensor (L6/4) through opening of axle tube (2) | ||
| 6 | Unclip electrical line (4) or electrical line (5) from brackets on axle tube (2) | ||
| 7 | Remove rubber grommet of electrical line (4) or electrical line (5) from brackets (3, 6) | ||
| 8 | Disconnect left rear axle rpm sensor electrical connector (L6/3x1) or right rear axle rpm sensor electrical connector (L6/4x1) | ||
| 9 | Unclip electrical connector (7) or electrical connector (8) from corresponding bracket | ||
| 10 | Remove left rear axle rpm sensor(L6/3) or right rear axle rpm sensor (L6/4) | ||
| 11 | Install in the reverse order | ||
| 12 |
Connect diagnostic system, read out fault memory and erase if necessary | AD00.00-P-2000-06SR |
REAR AXLE RPM SENSOR
| Number | Designation | MODEL 453 | |
|---|---|---|---|
| BA42.30-P-1001-02L | Bolt, rpm sensor on rear axle to brake cover plate | Nm | 6, 5 |
