Remove/Install Brake Lines On Underfloor - AR42.10-P-0001SR
MODEL 453
Shown on MODEL 453.3 with CODE I01
(Automatic air conditioning)
| Risk of poisoning
from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||
| 1 | Insert brake pedal jack with adapter for brake pedal jack between brake pedal and driver's seat, and press brake pedal approx. 2 cm | Cover driver seat. Otherwise the driver's seat may be soiled or damaged. |
Fig 3 |
| Fig 1 | |||
| 2 | Raise vehicle with vehicle lift | ||
| 3 | Remove underfloor panels | ||

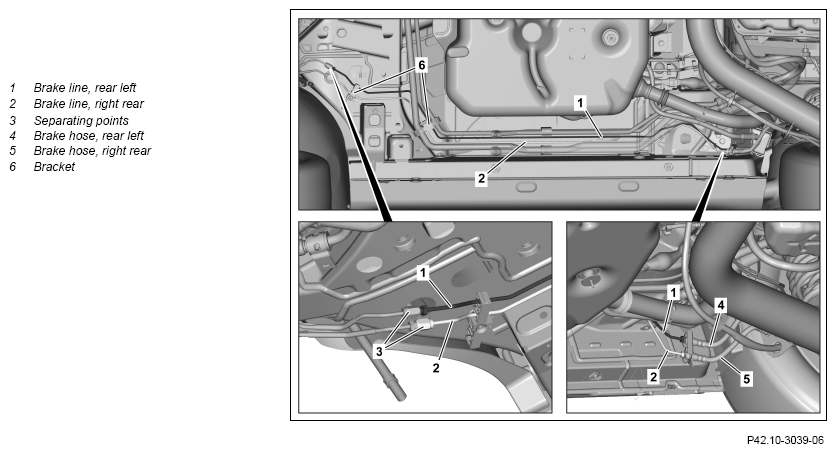

| 4 | Unscrew left rear brake line (1) or right rear brake line (2) at separating point (3) and seal off connections | *BA42.10-P-1005-04SR | |
| Fig 2 | |||
| 5 | Unscrew left rear brake line (1) from left rear brake hose (4) or right rear brake line (2) from right rear brake hose (5) and seal off connections | *BA42.10-P-1002-04SR | |
| Fig 2 | |||
| 6 | Detach bracket (6) from body | Model 453 with code I01 (Air conditioning Plus) Model 453 with code I77 (Air conditioning, manual) Do not kink or bend the refrigerant lines. Otherwise leaks can occur in the refrigerant circuit. |
|
| 7 | Unclip left rear brake line (1) or right rear brake line (2) | ||
| 8 | Remove left rear brake line (1) or right rear brake line (2) | Do not kink or bend the left rear brake line (1) or right rear brake line (2). Otherwise leaks can occur in the brake circuit. |
|
| 9 | Install in the reverse order | ||
| 10 | Bleed brake system | AR42.10-P-0010SR |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 453 | |
|---|---|---|---|
| BA42.10-P-1002-04SR | Retaining screw, brake line to brake hose | Nm | 13 |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 453 | ||
|---|---|---|---|---|
| BA42.10-P-1005-04SR | Retaining screw, brake line to threaded socket | Stage 1 | Nm | 8 |
| Stage 2 | ∠° | 40 | ||
