Remove/Install Brake Hose At Rear Axle - AR42.10-P-0023SR
MODEL 453

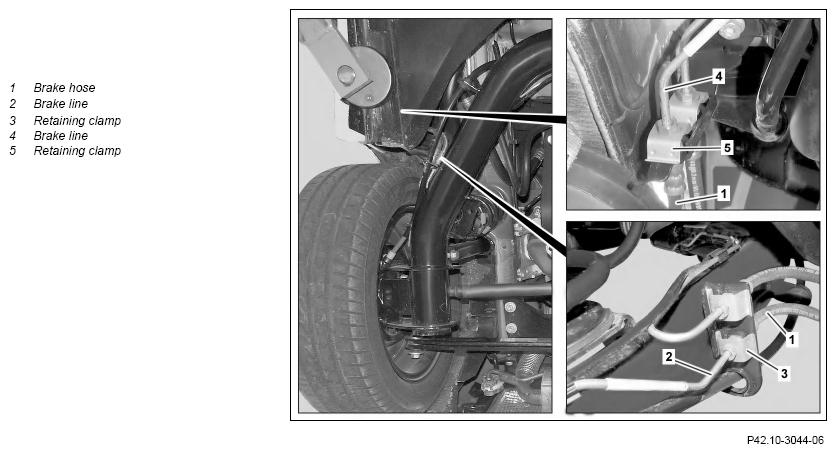

Shown on brake hose (1) of right rear service brake
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of poisoning
from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Remove/install | |||
| 1 | Install brake pedal jack with adapter between brake pedal and driver seat, and depress brake pedal by approx. 2 cm | Cover driver seat. Otherwise the driver seat could be soiled or damaged. |
|
| Figure | |||
| Figure | |||
| 2 | Raise vehicle with vehicle lift | ||
| 3 | Unscrew retaining screw of brake line (2) from brake hose (1) | *BA42.10-P-1002-04SR | |
| 4 | Seal connections of brake line (2) and brake hose (1) immediately | Figure | |
| 5 | Remove brake hose (1) from bracket and remove retaining clamp (3) | Otherwise the brake hose (1) will be damaged. |
|
| 6 | Detach underfloor paneling in area of connection between brake line (4) and brake hose (1) | ||
| 7 | Unscrew retaining screw of brake line (4) from brake hose (1) | *BA42.10-P-1002-04SR | |
| 8 | Seal connections of brake line (4) and brake hose (1) immediately | Figure | |
| 9 | Remove brake hose (1) from bracket and remove retaining clamp (5) | ||
| 10 | Install in the reverse order | ||
| 11 | Bleed brake system | AR42.10-P-0010SR |
BRAKE LINES, BRAKE HOSES
| Number | Designation | MODEL 453 | |
|---|---|---|---|
| BA42.10-P-1002-04SR | Retaining screw, brake line to brake hose | Nm | 13 |
