Retrofit Trim Piece On Parking Brake Lever - AZ42.20-P-0006SR
Model 453.0/3/4
| Remove | |||
| 1 |
Remove center console | AR68.20-P-2000SR | |

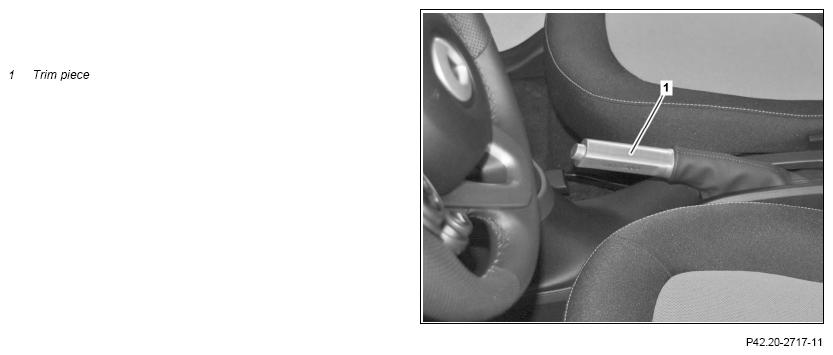

| 2 | Remove trim piece (1) fitted at factory to parking brake lever | Do not cut too deeply. Otherwise the components below can be damaged and weakened. |
AZ42.20-P-0006-01SR |
| install | |||
| 3 | Install new trim piece (1) onto parking brake lever | AZ42.20-P-0006-02SR | |
| 4 |
Install center console | AR68.20-P-2000SR | |
| Update Vehicle Documentation (VeDoc) | |||
| 5 | Attach "Parking brake lever trim piece retrofitted according to AZ42.20-P-0006SR " note under field organization texts to design group (KG) 42 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 | Parts kit for parking brake lever trim piece | 1 |
