Assess Condition Of Brake Disks - AP42.10-P-4256EW
MODEL 117, 156, 164, 166, 169, 171, 172, 176, 177, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 251, 253, 257, 292, 453, 463

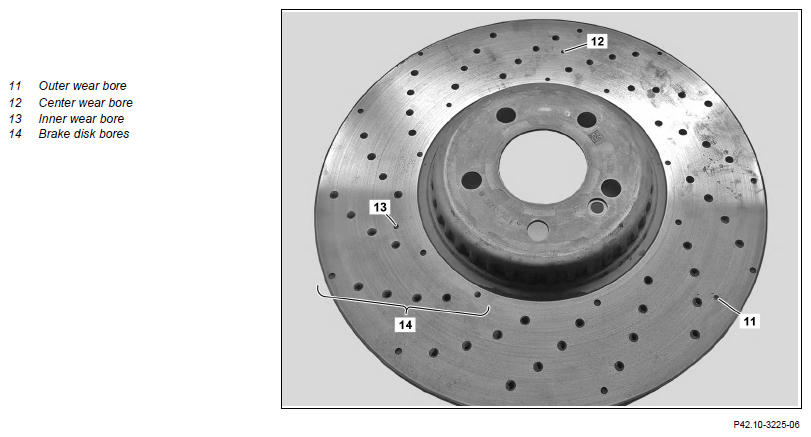

Perforated compound brake disk with wear bores

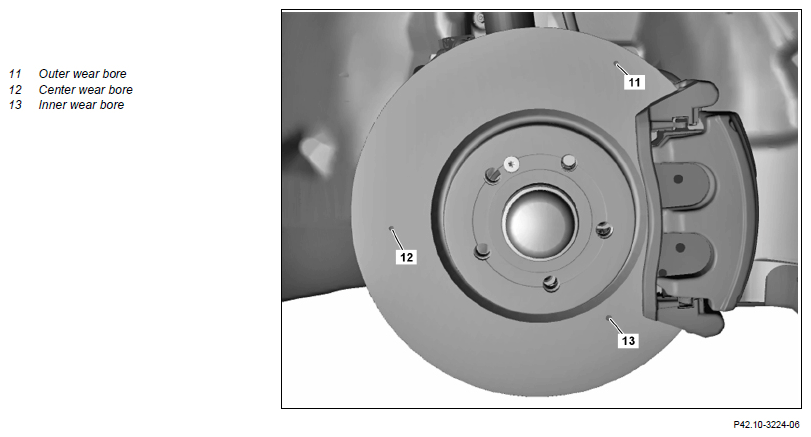

Compound brake disk with wear bores
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on handling, transport and storage of composite brake disks | Model 190, 205, 213, 217, 222, 238, 253, 257 | AH42.10-P-9406-12LF | |
| Notes on handling, transport and storage of ceramic brake disks | Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253 with code B07 (Ceramic brake system) |
AH42.10-P-9406-13A | |
| Check | |||

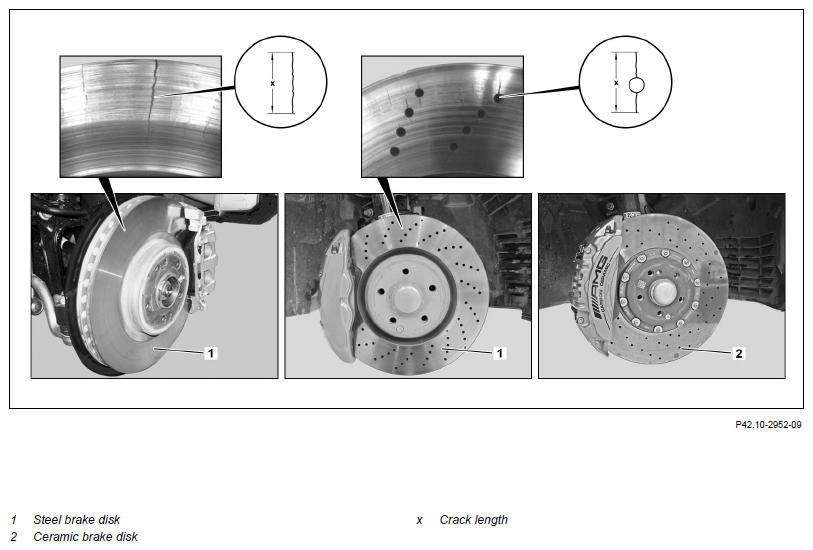

| 1.1 | Assess steel brake disks (1) for score marks, cracks, corrosion and soiling (e.g. oil, grease). | Model 117, 156, 164, 166, 169, 171, 172, 176, 203, 204, 207, 209, 211, 219, 221, 230, 238, 242, 245, 246, 251, 253, 292, 453, 463 Model 190, 197.3/4, 205, 212, 213, 217, 218, 222, 231 except code B07 (Ceramic brake system) Model 205 with code B07 (Ceramic brake system) and steel brake disks on the rear axle For perforated or counterbored steel brake disks (1) assess the crack length (x) including the bore diameter. Otherwise the assessment may be incorrect. If a crack length (x) is ≥ 25 mm (0.98 inches) split open cracks or score marks are deeper than 0.5 mm (0.02 inches), or severe corrosion is present. ↓ Replace steel brake disks (1). If soiling (e.g. oil, grease) is present. ↓ Clean steel brake disks (1), and replace if necessary. |
|
| 1.2 | Assess ceramic brake disks (2) for damage and soiling (e.g. oil, grease). Notes on evaluating brake disks |
Model 190, 197, 205, 212, 213, 217, 218, 222, 231, 253 with code B07 (Ceramic brake system) If the ceramic brake disks (2) are damaged or soiled. ↓ Replace ceramic brake disks (2). |
AH42.10-P-9406-07RQ |
| If, in exceptional cases, assessment of the ceramic brake disks (2) is not possible by means of a visual check. ↓ Check ceramic brake disks (2) for condition. Model 190, 205 with code B07 (Ceramic brake system) |
AP42.10-P-4258AC | ||
| Model 197, 212, 218, 231 with code B07 (Ceramic brake system) |
AP42.10-P-4258QQ | ||
| Model 213, 253 | AR42.10-P-0120LWG | ||
| Model 217 with code B07 (Ceramic brake system) |
AP42.10-P-4258CC | ||
| Model 222 with code B07 (Ceramic brake system) |
AP42.10-P-4258HC | ||
| 2.1 | Assess steel brake disks (1) for wear. Notes on evaluating brake disks with and without wear holes |
Model 117, 156, 164, 166, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 251, 257, 292, 453, 463 Model 190, 197.3/4, 205, 212, 213, 217, 218, 222, 231, 253 except code B07 (Ceramic brake system) Model 205 with code B07 (Ceramic brake system) and steel brake disks on the rear axle Steel brake disks (1) with wear bores. If outer wear bore (11), center wear bore (12) and the inner wear bore (13) are visible. ↓ The steel brake disks (1) are OK; new brakepads can still be installed on the disks. If the inner wear bore (13) is visible. ↓ The steel brake disks (1) are OK. The current brakepads can continue to be used. New brakepads may no longer be installed on the steel brake disks (1). If none of the three wear bores are visible. ↓ Replace steel brake disks (1). If, in exceptional cases, assessment of the steel brake disks (1) is not possible by means of a visual check. ↓ Check steel brake disks (1) for condition. |
AH42.10-P-9406-14A |
| Model 117 | AP42.10-P-4258NK | ||
| Model 156 | AP42.10-P-4258NL | ||
| Model 164, 251 | AP42.10-P-4258GZ | ||
| Model 166 | AP42.10-P-4258GQ | ||
| Model 169 Model 245 (except 245.286) |
AP42.10-P-4258AK | ||
| Model 171, 172 | AP42.10-P-4258V | ||
| Model 176 | AP42.10-P-4258NM | ||
| Model 190 except code B07 (Ceramic brake system) |
AP42.10-P-4258A | ||
| Model 197.3/4 except code B07 (Ceramic brake system) |
AP42.10-P-4258RQ | ||
| Model 203 | AP42.10-P-4258BP | ||
| Model 204 | AP42.10-P-4258CW | ||
| Model 205 except code B07 (Ceramic brake system) Model 207 Model 212 except code B07 (Ceramic brake system) Model 218 except code B07 (Ceramic brake system) |
AP42.10-P-4258EW | ||
| Model 209 | AP42.10-P-4258BQ | ||
| Model 211 | AP42.10-P-4258R | ||
| Model 230 | |||
| Model 213, 253 | AR42.10-P-0120LWG | ||
| Model 216 Model 221.0/1 |
AP42.10-P-4258SX | ||
| Model 217 except code B07 (Ceramic brake system) |
AP42.10-P-4258C | ||
| Model 219 | AP42.10-P-4258TX | ||
| Model 222 except code B07 (Ceramic brake system) |
AP42.10-P-4258HA | ||
| Model 231 except code B07 (Ceramic brake system) |
AP42.10-P-4258RK | ||
| Model 238 | AR42.10-P-0120LWO | ||
| Model 242 | AP42.10-P-4258NP | ||
| Model 246 | AP42.10-P-4258NR | ||
| Model 257 | AR42.10-P-0120FR | ||
| Model 292 | AR42.10-P-0120A | ||
| Model 453 | AP42.10-P-4258S | ||
| Model 463.202/236/237/346 as of model year 2012 Model 463.272/273/274 |
AP42.10-P-4258G | ||
| 2.2 | Assess steel brake disks (1) for wear. | Model 117, 156, 164, 166, 169, 171, 172, 176, 177, 203, 204, 207, 209, 211, 216, 219, 221, 230, 238, 242, 245, 246, 251, 257, 292, 453, 463 Model 190, 197.3/4, 205, 212, 213, 217, 218, 222, 231, 253 except code B07 (Ceramic brake system) Model 205 with code B07 (Ceramic brake system) and steel brake disks on the rear axle Steel brake disks (1) without wear bores. |
|
| Notes on evaluating brake disks with and without wear holes | If deeply contoured ridging is present at the outer edge. ↓ Replace steel brake disks (1). If, in exceptional cases, assessment of the steel brake disks (1) is not possible by means of a visual check. ↓ Check steel brake disks (1) for condition. |
AH42.10-P-9406-14A | |
| Model 117 | AP42.10-P-4258NK | ||
| Model 156 | AP42.10-P-4258NL | ||
| Model 164, 251 | AP42.10-P-4258GZ | ||
| Model 166 | AP42.10-P-4258GQ | ||
| Model 169, 245 (except 245.286) | AP42.10-P-4258AK | ||
| Model 171, 172 | AP42.10-P-4258V | ||
| Model 176 | AP42.10-P-4258NM | ||
| Model 190 except code B07 (Ceramic brake system) |
AP42.10-P-4258A | ||
| Model 197.3/4 except code B07 (Ceramic brake system) |
AP42.10-P-4258RQ | ||
| Model 203 | AP42.10-P-4258BP | ||
| Model 204 | AP42.10-P-4258CW | ||
| Model 205 except code B07 (Ceramic brake system) Model 207 Model 212 except code B07 (Ceramic brake system) Model 218 except code B07 (Ceramic brake system) |
AP42.10-P-4258EW | ||
| Model 209 | AP42.10-P-4258BQ | ||
| Model 211, 230 | AP42.10-P-4258R | ||
| Model 213, 253 | AR42.10-P-0120LWG | ||
| Model 216, 221.0/1 | AP42.10-P-4258SX | ||
| Model 217 except code B07 (Ceramic brake system) |
AP42.10-P-4258C | ||
| Model 219 | AP42.10-P-4258TXM | ||
| Model 222 except code B07 (Ceramic brake system) |
AP42.10-P-4258HA | ||
| Model 231 except code B07 (Ceramic brake system) |
AP42.10-P-4258RK | ||
| Model 238 | AR42.10-P-0120LWO | ||
| Model 242 | AP42.10-P-4258NP | ||
| Model 246 | AP42.10-P-4258NR | ||
| Model 257 | AR42.10-P-0120FR | ||
| Model 292 | AR42.10-P-0120A | ||
| Model 453 | AP42.10-P-4258S | ||
| Model 463.202/236/237/346 as of model year 2012 Model 463.272/273/274 |
AP42.10-P-4258G |
