Remove/Install Rear Soft Top Retaining Clip - AR77.30-P-1151SRC

MODEL 453.4

Courtesy of MERCEDES-BENZ USA

	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install

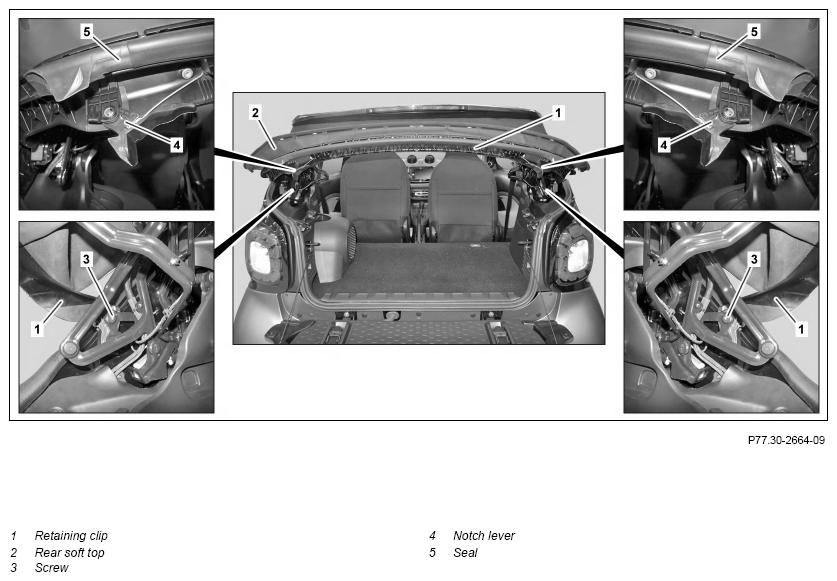

1	Open liftgate
2	Fold up retaining clip (1)
3	Unhook rear soft top (2) from retaining clip (1) from outside towards inside
4	Secure rear soft top (2) and rear window so they cannot fold down
5	Remove clips remaining in retaining clip (1) with suitable tool	: Fit clips on hook-in lug on rear soft top (2).
6	Fold down retaining clip (1)
7	Unscrew bolts (3) and remove retaining clip (1)	Make sure that nuts of bolts (3) are not pushed out of retaining clip (1) housing. : Position retaining clip (1) and engage notch levers (4).
8	Remove notch levers (4)	When replacing retaining clip (1).
9	Remove lock pin	When replacing retaining clip (1).	AR77.30-P-1152SRC
10	Pull seal (5) out of retaining clip (1)	When replacing retaining clip (1).
11	Install in the reverse order
	Check
12	Check that retaining clip (1) is correctly engaged
