Remove/Install Arresting Bolt On Rear Soft Top Retaining Clip - AR77.30-P-1152SRC

MODEL 453.4

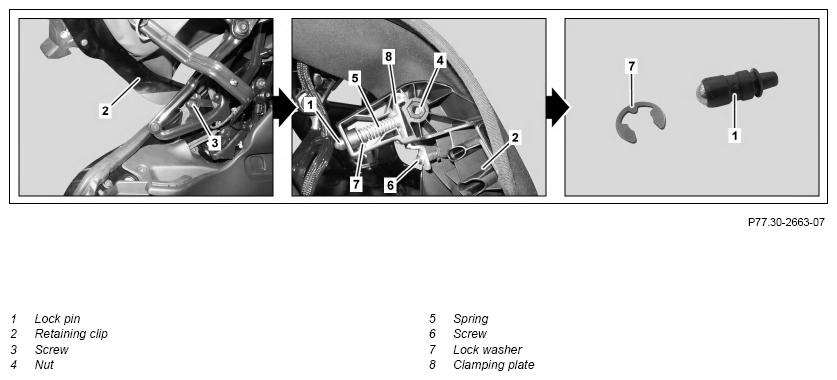

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install
1	Open liftgate
2	Fold up retaining clip (2)	: Retaining clip (2) must engage securely on both sides.
3	Unscrew bolts (3) on left and right of retaining clip (2)	Make sure that nuts (4) are not pushed out of retaining clip (2) housing.
4	Relax tension of spring (5) by slackening bolt (6)
5	Remove circlip (7)
6	Pull out lock pins (1)	: Make sure that spring (5) and clamping plate (8) are positioned correctly. If complaint present ↓ Correct position of spring (5) and clamping plate (8) with the aid of bolt (6)
7	Install in the reverse order
	Check
8	Check that retaining clip (2) is correctly engaged
