Remove/Install B-Pillar Catch - AR77.33-P-2100SRC
MODEL 453.4
| Notes on soft tops | AH77.30-P-0001-01MCO | ||
| Remove | |||
| 1 | Remove paneling on B-pillar | AR68.30-P-4700SRC | |
| 2 | Open rear soft top cover | ||
| 3 | Remove cover (3) | ||
| 4 | Mark installation position of latch (1) | ||

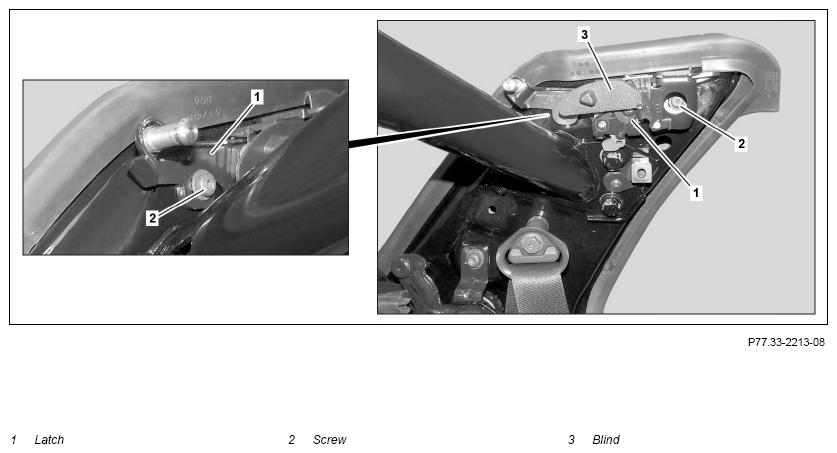

| 5 | Unscrew bolts (2) and remove latch (1) | ||
| Install | |||
| 6 | Position latch (1) in line with markings and tighten bolts (2) | ||
| Check | |||
| 7 | Install side support | In the event of complaints ↓ Adjust latch (1) as necessary |
|

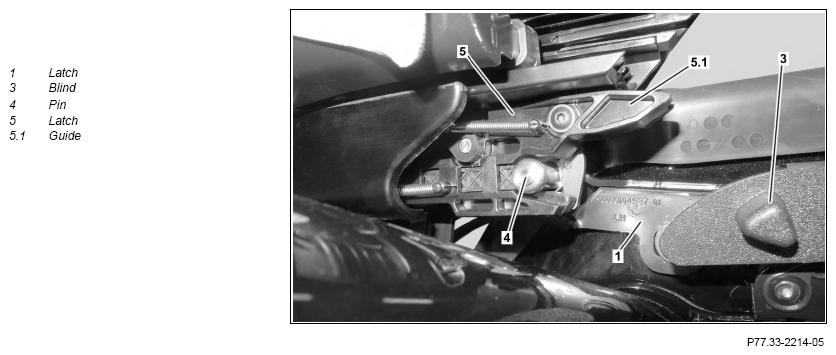

| 8 | Close rear soft top and make sure that pin (4) and guide (5.1) are correctly positioned | In the event of a collision, interrupt closure of rear soft top immediately. Otherwise soft top components can be damaged. The pin (4) must run centrally into the catch (5) and the guide (5.1) run securely into the side support. In the event of a collision or other deviations ↓ Adjust soft top |
AR77.30-P-1010SRC |

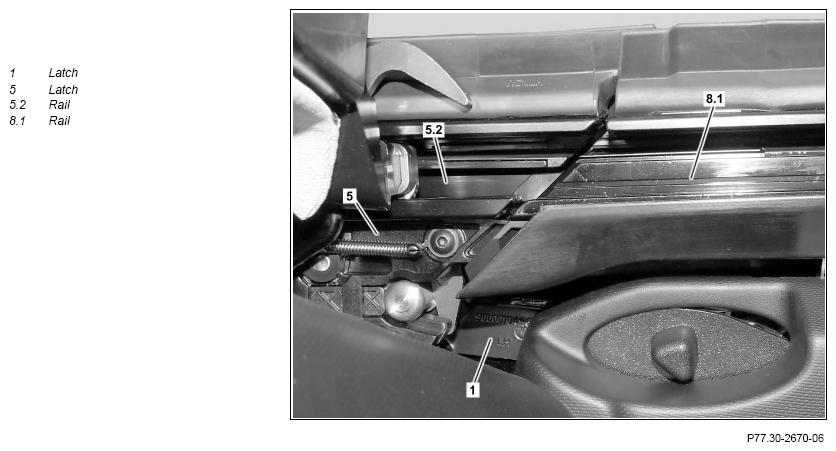

| 9 | Check height offset of rails (5.2, 8.1) | There must not be any height offset. Otherwise the sliders can be damaged. If deviations are present ↓ Adjust soft top |
AR77.30-P-1010SRC |
| 10 | Remove side support | ||
| 11 | Put on cover (3) | ||
| 12 | Close rear soft top | ||
| 13 | Fold up clamping bracket on rear soft top | ||
| 14 | Install paneling at B-pillar | AR68.30-P-4700SRC |
