Retrofit Trim Piece On Instrument Panel - AZ68.10-P-0002SR
MODEL 453.0/3/4
with CODE 535 (smart Media system)
MODEL 453.0/3/4
with CODE 537 (smart Audio system)
| Remove | |||
| 1 | Unclip cover from instrument cover toward steering wheel | Figure | |
| 2 |
Remove side air vent on driver side | AR68.10-P-1100SR | |
| 3.1 |
Remove communication unit | Model 453.0/3/4 with code 535 (smart Media system) |
AR82.85-P-2000SR |
| 3.2 |
Remove radio | Model 453.0/3/4 with code 537 (smart Audio system) |
AR82.60-P-7502SR |
| Install | |||

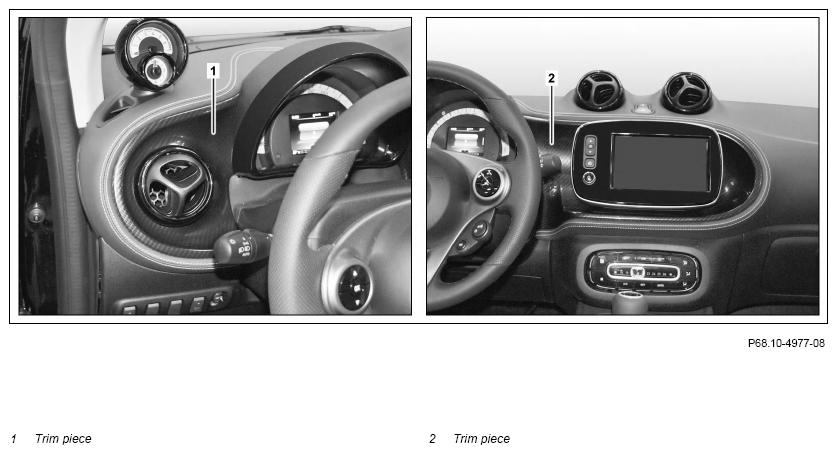

| 4 | Install trim pieces (1, 2) on instrument panel | AZ68.10-P-0002-01SR | |
| Cleaner | *BR00.45-Z-1025-04A | ||
| 5 | Install remaining parts | ||
| Update Vehicle Documentation (VeDoc) | |||
| 6 | Attach note for trim piece in instrument panel retrofitted according to AZ68.10-P-0002SR under field organization texts to DG (KG) 68 |
REPAIR MATERIAL
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 | Parts kit for trim piece on instrument panel | 1 |
