Remove/Install Side Air Vent - AR68.10-P-1100SR

MODEL 453

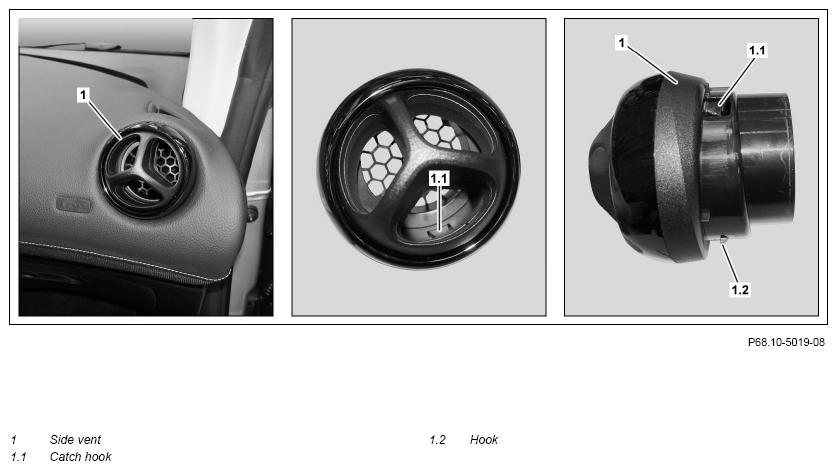

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Lift catch hooks (1.1) and pull out side air vent (1)	Lift catch hooks (1.1) only slightly. Otherwise they can deform and the side air vent (1) is not held securely. The left side air vent (1) is equipped with three catch hooks (1.1). A fixed hook (1.2) is attached to the right side air vent (1) instead of a third catch hook (1.1). Extraction hook	Fig 1
2	Install in the reverse order

Fig 1: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
