Retrofit Side Spoiler On Longitudinal Member Panel - AZ88.30-P-0016SR
MODEL 453.3/4
| Install | |||

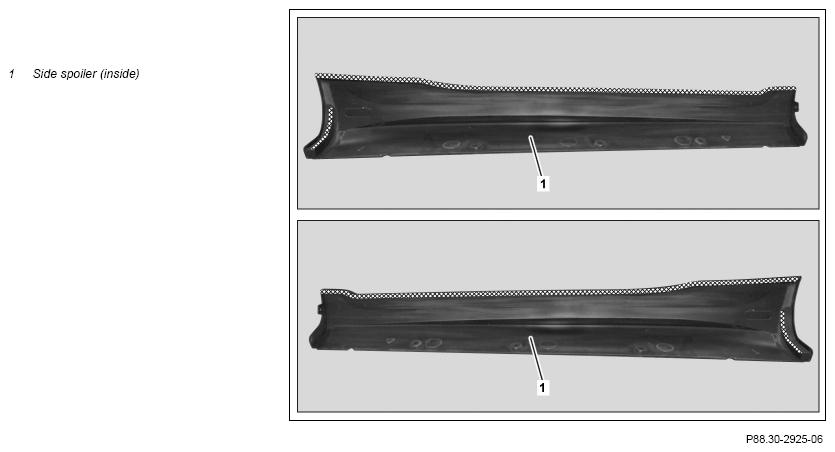

| 1 | Paint outside of side spoilers (1) as well as cross-hatched areas on inside of side spoilers (1) | ||
| 2 | Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Lift vehicle with vehicle lift |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. |
AS00.00-Z-0010-01A |

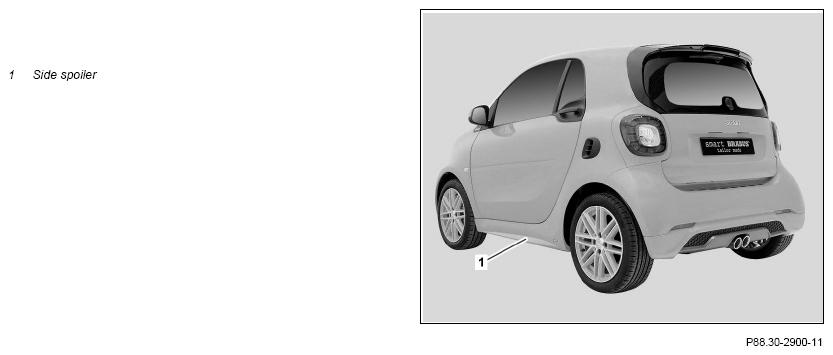

| 3 | Retrofit side spoiler (1) | When pressing on, ensure that the pressure is applied directly on the adhesive strips. The maximum adhesive strength is only reached after approx. 72 h at 20 °C. Avoid any contact with moisture (e.g. rain, fog, frost, carwash) or any mechanical stress within the first 24 h. Otherwise adhesion problems may occur. |
AZ88.30-P-0017-01SR |
| Cleaner | *BR00.45-Z-1025-04A | ||
| Update Vehicle Documentation (VeDoc) | |||
| 4 | Attach note "Side spoiler on longitudinal member panel retrofitted according to AZ88.30-P-0016SR" field organization texts for design group 88 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
PARTS ORDERING NOTE
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 | Side spoiler parts kit | 1 |
| A 453 989 01 00 | Bonding kit | 2 |
