Retrofit Unilluminated Door Sill Molding - AZ68.30-P-0005SR

MODEL 453.3/4

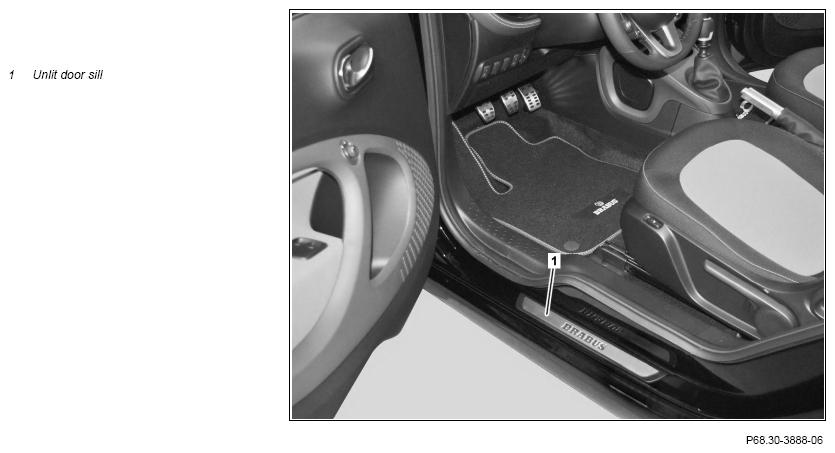

Shown on left side of vehicle

G12096161

Courtesy of MERCEDES-BENZ USA

	Clean
1	Clean left and right door sill	The area on the left and right door sill to be bonded must be free of dust and grease. Cleaner	*BR00.45-Z-1025-04A
	Install
2	Install left and right unlit door sill (1)	When pressing on, exert pressure directly to adhesive points on unlit door sill (1). The maximum adhesive force is reached after approx. 72 h at 20°C. Avoid any contact with moisture (e.g. frost, rain, fog, frost, carwash) or any mechanical stress during first 24 h. Otherwise adhesion problems may occur.	AZ68.30-P-0005-01SR
	Update Vehicie Documentation (VeDoc)
3	Attach note for unlit door sill retrofitted according to AZ68.30-P-0005SR under field organization texts to DG (KG) 60

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Parts kit for cover rail	1
