Remove/Install CMS Front - Ar62.10-P-1020SR
Model 453
MODIFICATION NOTES
| 06.07.2016 | Step 4 added | 453.062/362/462 |

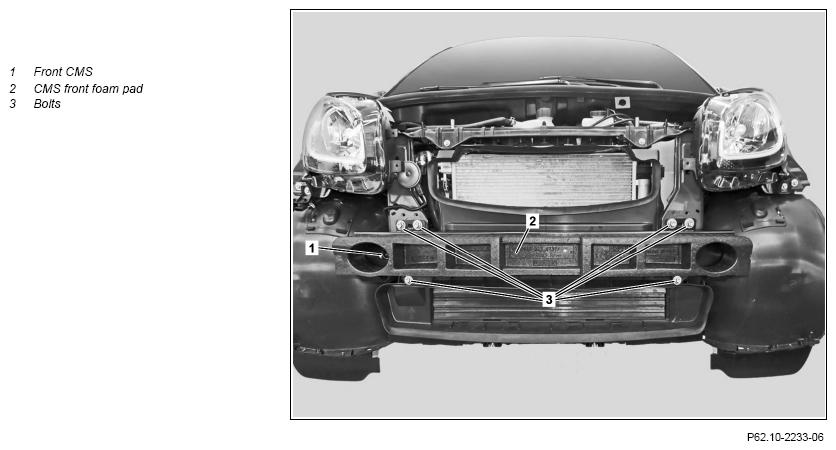

Shown on model 453.0 with removed lamp units

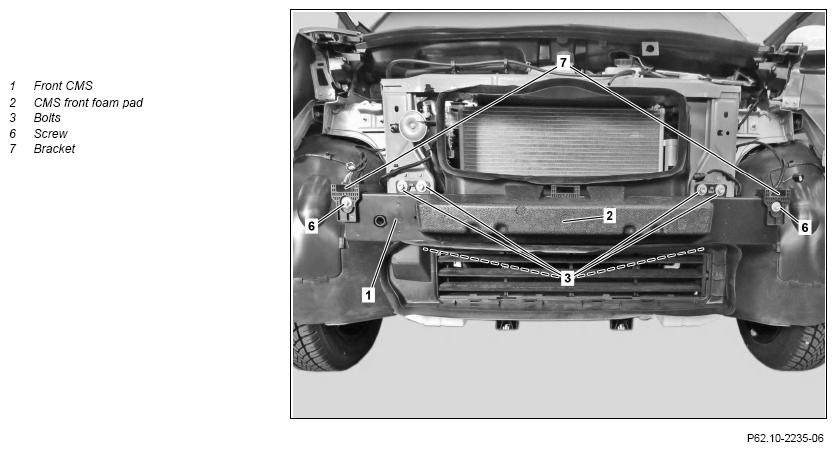

Shows on model 453.3
| Remove/install | |||
| 1 | Remove front bumper | Model 453.0 | AR88.20-P-2000SR |
| Model 453.3/4 | AR88.20-P-2000SRA | ||
| 2 | Remove CMS front foam pad (2) | If CMS front foam pad (2) is damaged ↓ Replace CMS front foam pad (2) |
|

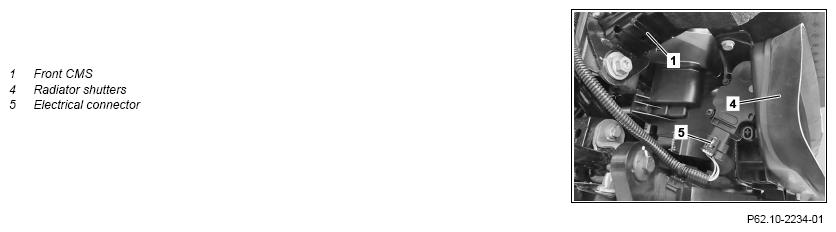

| 3 | Disconnect electrical connector (5) from radiator shutters (4) | ||
| 4 | Disconnect electrical connector from horn, unscrew bolt and remove horn | Model 453.062/362/462 | |
| 5 | Unscrew bolts (3) and remove CMS front (1) | *BA62.30-P-1001-02L | |
| 6 | Unscrew bolt (6) and remove brackets (7) | When replacing CMS front (1). | |
| 7 | Remove radiator shutters (4) from CMS front (1) | When replacing CMS front (1). | |
| 8 | Install in the reverse order |
FRONT END WITH FRONT REINFORCEMENT
| Number | Designation | Model 453.0/3/4 | |
|---|---|---|---|
| BA62.30-P-1001-02L | Screw/bolt, crossmember to longitudinal member | Nm | 21 |
