Remove/Install Hinge Of Front Door - AR72.10-P-2662SRA

MODEL 453.3/4

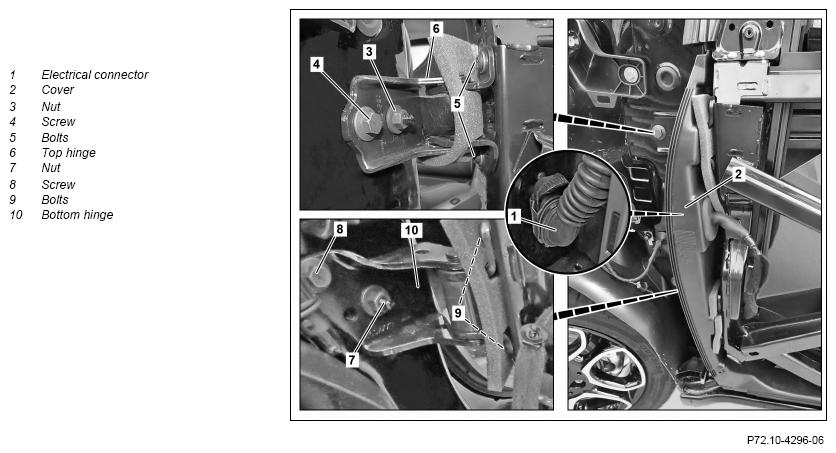

Shown on left side of vehicle

	Remove/install
1	Remove front fender		AR88.10-P-1000SRA
2	Remove door paneling		AR72.18-P-1000SRA
3	Disconnect electrical connector (1)
4	Unclip cover (2) and lay electrical wiring harness down to side
5	Close front door
6	Mark position of upper hinge (6) or lower hinge (10)
7	Unscrew nut (3) or nut (7)	Bolt/nut, hinge to body	*BA72.10-P-1002-01SR
8	Unscrew bolts (4, 5) and remove upper hinge (6)	When removing top hinge (6). Lower hinge (10) must be installed. Bolt/nut, hinge to front door	*BA72.10-P-1001-01SR
9	Unscrew bolts (8, 9) and remove lower hinge (10	When removing bottom hinge (10). Upper hinge (6) must be installed. Bolt/nut, hinge to front door	*BA72.10-P-1001-01SR
10	Install in the reverse order
11	Adjust gap dimensions on front door (1)		AR72.10-P-0550SRA

FRONT DOOR

Number	Designation		Model 453
BA72.10-P-1001-01SR	Bolt/nut, hinge to front door	Nm	21

FRONT DOOR

Number	Designation		Model 453
BA72.10-P-1002-01SR	Bolt/nut, hinge to body	Nm	21
