Adjust Front Door - AR72.10-P-0550SRA

MODEL 453.3/4

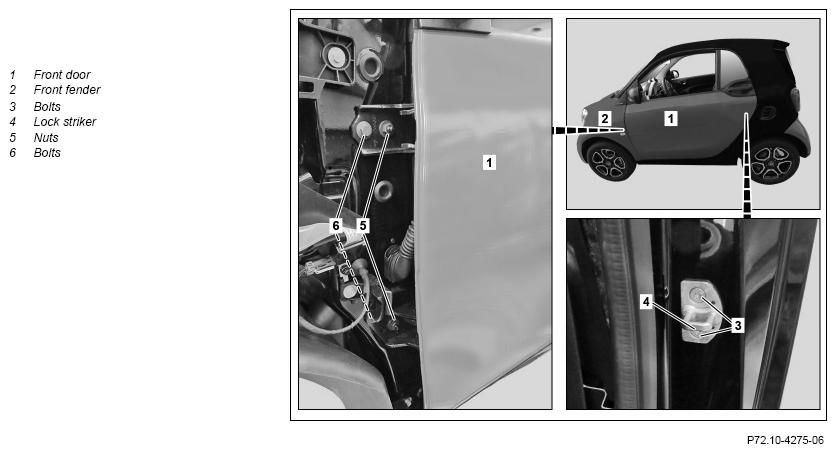

Shown on left side of vehicle on Model 453.3

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Check
1	Check gap dimensions on front door (1) all the way round		AR60.00-P-0700-01SR
		Front door side window to sidewall paneling	*BE60.00-P-1017-01CA
		Front door to sidewall paneling	*BE60.00-P-1015-01CA
		Front door to longitudinal member	*BE60.00-P-1014-01CA
		Fender to front door	*BE60.00-P-1012-01CA
		Front door to A-pillar	*BE60.00-P-1009-01CA
		Feeler gauge	Fig 1
	Remove
2	Remove front fender (2)		AR88.10-P-1000SRA
	Adjust
3	Mark position of lock striker (4)
4	Unscrew screws (3) and remove locking eye (4)
5	Loosen bolt (6) and nuts (5) on A-pillar
6	Adjust gap dimensions by moving front door (1)	Carefully move front door (1). If the front door (1) comes into contact with other components, the paint can be damaged.	AR60.00-P-0700-01SR
		Front door side window to sidewall paneling	*BE60.00-P-1017-01CA
		Front door to sidewall paneling	*BE60.00-P-1015-01CA
		Front door to longitudinal member	*BE60.00-P-1014-01CA
		Fender to front door	*BE60.00-P-1012-01CA
		Front door to A-pillar	*BE60.00-P-1009-01CA
		Feeler gauge	Fig 1
7	Tighten bolts (6) and nuts (5) on A-pillar	Bolt/nut, hinge to body	*BA72.10-P-1002-01SR
8	Insert lock striker (4) and screw in bolts (3) up to stop	Observe any previous markings. It should still be possible to adjust the lock striker (4).
9	Adjust transition between front door (1) and side wall by moving lock striker (4)	The contour of the front door (1) must be flush with the contour of the side wall or protrude max. 1 mm.
10	Tighten bolts (3)	Bolt, striker eye to pillar	*BA72.10-P-1004-01SR
	Install
11	Install front fender (2)		AR88.10-P-1000SRA
