Remove/Install The Liftgate Wiper Motor - AR82.30-P-6550SRA
MODEL 453.3
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove liftgate wiper arm | AR82.30-P-6911SR | |
| 2 | Remove inner paneling from window frame on liftgate | ||

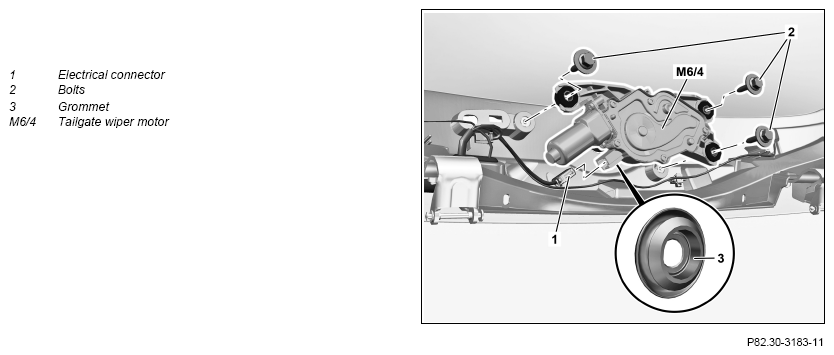

| 3 | Disconnect electrical connector (1) | ||
| 4 | Remove bolts (2) | *BA82.30-P-1003-01SR | |
| 5 | Pull liftgate wiper motor (M6/4) out of grommet (3) and remove | ||
| 6 | Check grommet (3) for damage, replace if necessary | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Carry out function test of wiper motor on liftgate (M6/4) |
WINDSHIELD WIPER
| Number | Designation | Model 453.3 | |
|---|---|---|---|
| BA82.30-P-1003-01SR | Nut/screw/bolt, wiper motor to liftgate | Nm | 21 |
