Remove/Install Liftgate Wiper Arm - AR82.30-P-6911SR
MODEL 453.0/3
Shown on MODEL 453.3
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Remove/install | |||
| 1 | Move windshield wiper system to park position | ||
| 2 | Mark position of wiper arm (1) using strip of adhesive tape on rear window | ||
| 3 | Raise cover (2) | ||
| 4 | Loosen nut (3) | *BA82.30-P-1004-01SR | |

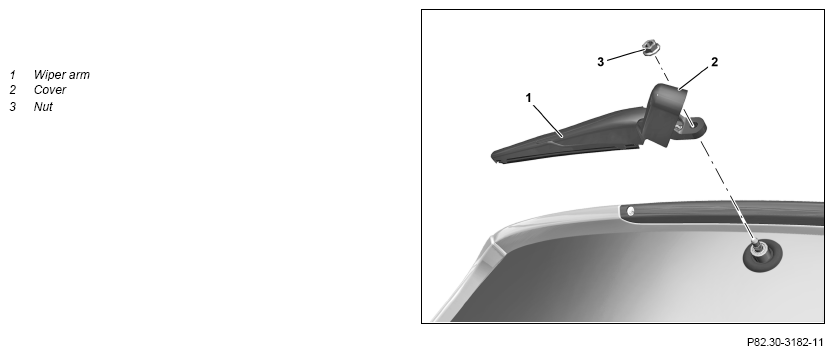

| 5 | Detach wiper arm (1) with puller from wiper motor | Figure | |
| 6 | Unscrew nut (3) and remove wiper arm (1) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Perform function test of wiper arm (1) |
WINDSHIELD WIPER
| Number | Designation | Model 453.0 | Model 453.3 | |
|---|---|---|---|---|
| BA82.30-P-1004-01SR | Nut, wiper arm to liftgate wiper motor | Nm | 12 | 12 |
