Remove/Install Inside Rearview Mirror - AR68.40-P-0001SR
MODEL 453
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rain/light sensor | MODEL 453 with CODE V54 (Rain/light sensor) |
AR82.30-P-7800SR |
| 2 | Remove multifunction camera | MODEL 453 with CODE 238 (ACTIVE LANE KEEPING ASSIST) |
AR54.21-P-3000SR |

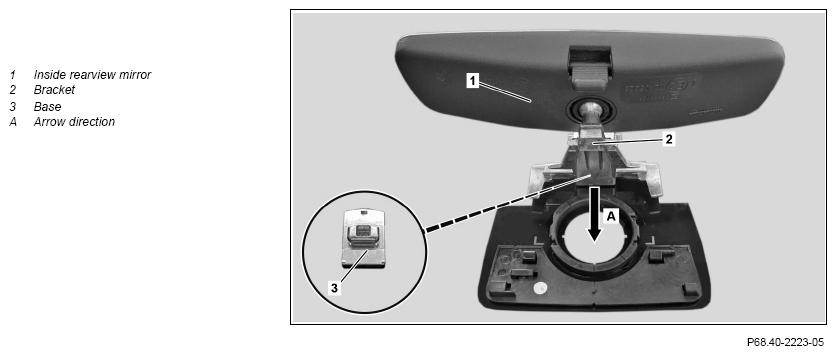

| 3 | Pry off inside rearview mirror (1) with bracket (2) from base (3) in direction of arrow (A) with suitable tool | ||
| 4 | Install in the reverse order | ||
| 5 |
Connect diagnostic unit, read out fault memory | MODEL 453 with CODE 238 (ACTIVE LANE KEEPING ASSIST) with CODE V54 (Rain/light sensor) |
AD00.00-P-2000-06SR |
