Retrofit Armrest On Center Console - AN68.20-P-0001SR

MODEL 453.3## ## as of 004524, 453.4

with CODE J58 (Center console with drawer)

except CODE 53U (Instrument panel and door center panels in blue fabric and accent trim in white)

Shown on Model 453.4 with code I32 (Smoker's package) and code 535 (smart Media System)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Remove

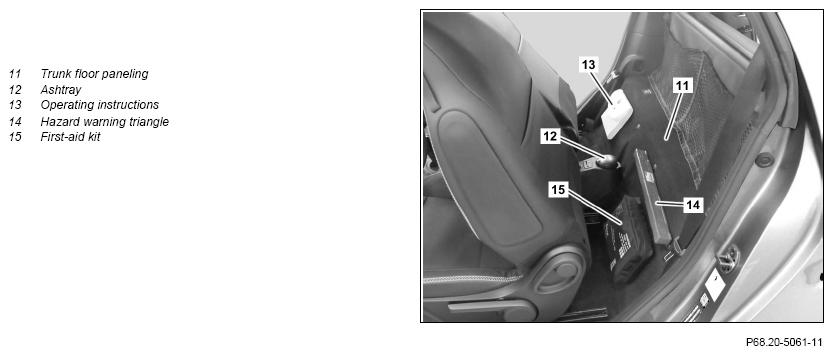

1	Move driver and passenger seat to front-most position and fold backrest toward front
2	Remove ashtray (12) from rear center console cover	Model 453.3## ## as of 004524, 453.4 with code I32 (Smoker's kit) with code J58 (Center console with drawer) except code 53U (Instrument panel and door center panels in blue fabric and accent trim in white)
3	Remove multimedia connection unit (A90/5) from rear center console cover	With code 535 (smart Media-System) or code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) or code 557 (Radio 57A MM2012 without DAB) or code 558 (smart Media-System with DAB)	AR82.60-P-1033SR
4	Remove 12-V socket or cigarette lighter (2) from rear center console cover	Rear center console is eliminated part.	AR54.10-P-1000SR
5	Remove first-aid kit (15)
6	Remove warning triangle (14)
7	Remove owner's manual (13)
8	Remove push button from trunk floor paneling (11)
9	Loosen trunk floor paneling (11) from vehicle floor as well as in side and rear area of rear seats
	Install

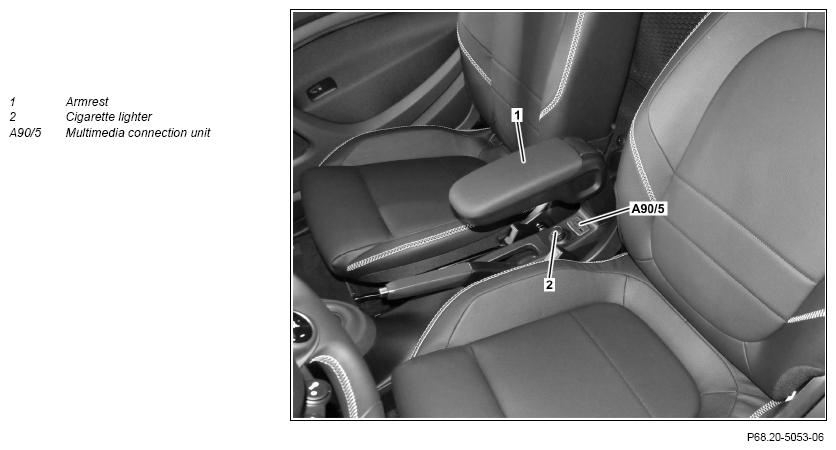

10	Install armrest (1)		AN68.20-P-0001-01SR
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SM
11	Install 12-V socket or cigarette lighter (2) into armrest (1)		AR54.10-P-1000SR
12	Install multimedia connection unit (A90/5) in armrest (1)	With code 535 (smart Media-System) or code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) or code 557 (Radio 57A MM2012 without DAB) or code 558 (smart Media-System with DAB)	AR82.60-P-1033SR
13	Insert ashtray (12) into armrest mount (1)	Model 453.3## ## as of 004524, 453.4 with code I32 (Smoker's kit) with code J58 (Center console with drawer) except code 53U (Instrument panel and door center panels in blue fabric and accent trim in white)
14	Install remaining parts
	Update Vehicle Documentation (VeDoc)
15	Delete special equipment from on-line vehicle data card	Code J58 (Center console with drawer)
16	Enter special equipment into the on-line vehicle data card	Code J59 (Center console with drawer and front armrest (folding))
17	Attach note armrest on center console retrofitted according to AN68.20-P-0001SR field organization texts for design group 68
