Remove/Install Fanfare Horns - AR54.35-P-1555SR
MODEL 453

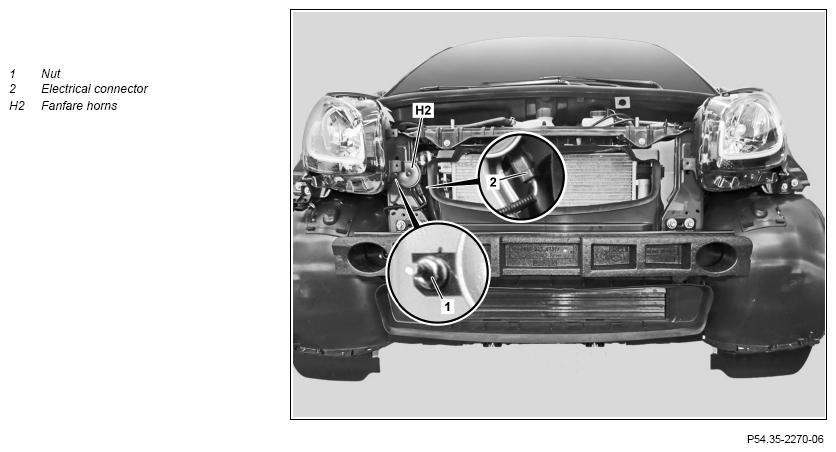

Shows on model 453.3
| Remove/install | |||
| 1 | Remove front bumper | Model 453.0 | AR88.20-P-2000SR |
| Model 453.3/4 | AR88.20-P-2000SRA | ||
| 2 | Disconnect electrical connection (2) | ||
| 3 | Unscrew nut (1) and remove horn (H2) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check function of horn (H2) |
