Removing And Installing Parktronic System (PTS) Switch - AR54.65-P-0005SR
MODEL 453
with CODE 220 (Parking Assist)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

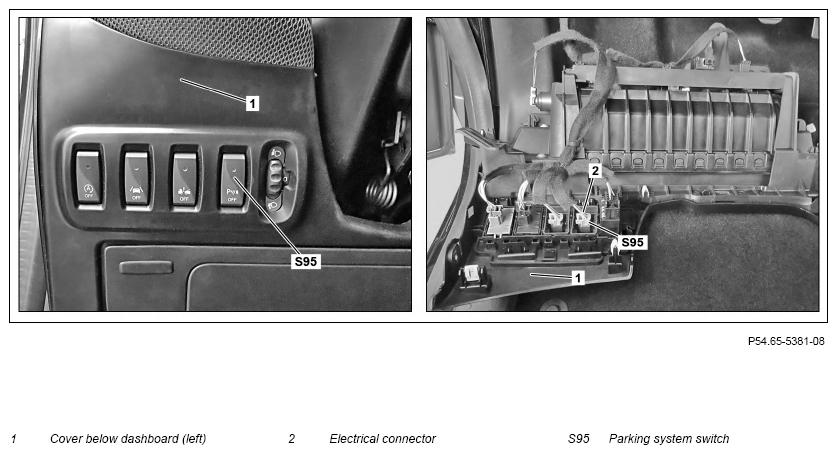

| 1 | Detach cover under instrument panel (left) (1) with electrical connectors connected and place in footwell | Damage to the electrical connectors can otherwise occur. |
AR68.10-P-1500SR |
| 2 | Disconnect electrical connector (2) | ||
| 3 | Unclip parking system switch (S95) | ||
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check rear parking assist for proper operation |
