Remove/Install Speaker In The Side Paneling (Rear) - AR82.62-P-7837SR
MODEL 453.0/3
with CODE 810 (Sound system)

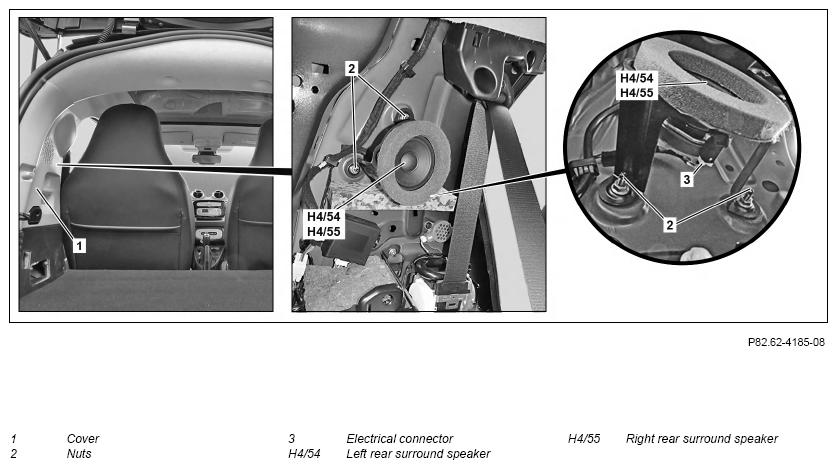

Shown on Model 453.3
| Remove/install | |||
| 1 | Remove trim (1) | Model 453.3 with code 810 (Sound system) |
AR68.30-P-4800SRA |
| Model 453.0 with code 810 (Sound system) |
AR68.30-P-4800SR | ||
| 2 | Unscrew nuts (2) | ||
| 3 | Disconnect electrical connection (3) | ||
| 4 | Remove left rear surround speaker (H4/54) or right rear surround speaker (H4/55) | ||
| 5 | Install in the reverse order | ||
| Check | |||
| 6 | Check left rear surround speaker (H4/54) or right rear surround speaker (H4/55) for proper operation |
