Remove/Install Charge Air Temperature Sensor Downstream Of Throttle Valve - AR09.41-P-0005SR
ENGINE 281.910 in MODEL 453
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||

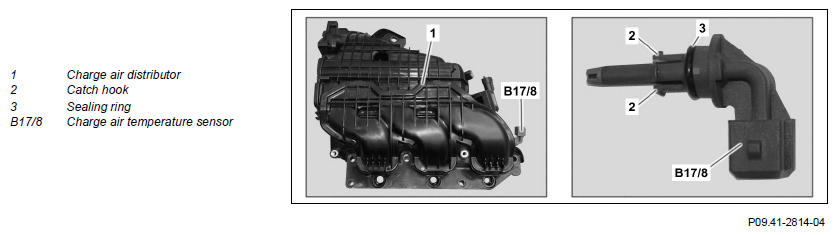

| 1 | Remove charge air distributor (1) | AR09.41-P-1310SR | |
| 2 | Unlock catch hook (2) using a suitable tool in charge air distributor (1) and remove charge air temperature sensor (B17/8) at the same time | ||
| Check | |||
| 3 | Check catch hook (2) for damage | If there are problems: ↓ Replace charge air temperature sensor (B17/8) |
|
| Install | |||
| 4 | Install new sealing ring (3) | ||
| 5 | Install charge air temperature sensor (B17/8) in charge air distributor (1) | ||
| 6 | Install charge air distributor (1) | AR09.41-P-1310SR | |
| 7 | Connect diagnostic unit, read out fault memory | When replacing the charge air temperature sensor (B17/8). | |
| AD00.00-P-2000-06SR |
