Remove/install rear CBS - AR88.20-P-1900MCC

MODEL 451.3/4

Shown on vehicle as of 20.3.12

Not on model 451.391/491

Model 451.391/491

Shown on vehicle as of 19.3.12

	Remove/install
1	Remove left and right longitudinal member panel		AR88.80-P-6000MCC
2	Open liftgate

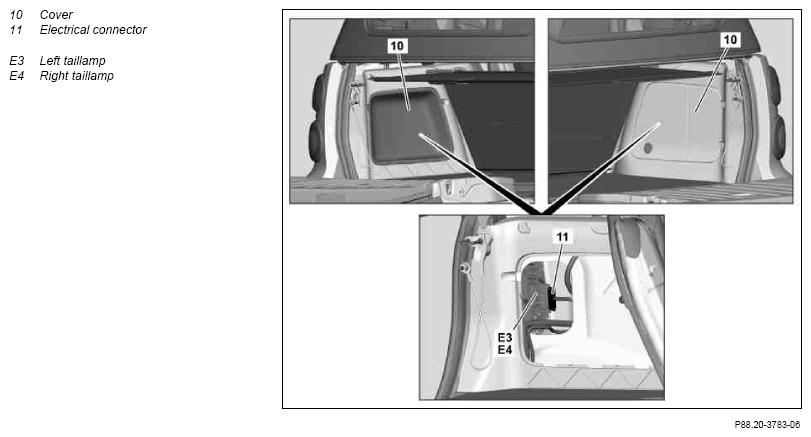

3	Remove covers (10) and disconnect electrical connector (11) from left taillamp (E3) and right taillamp (E4)

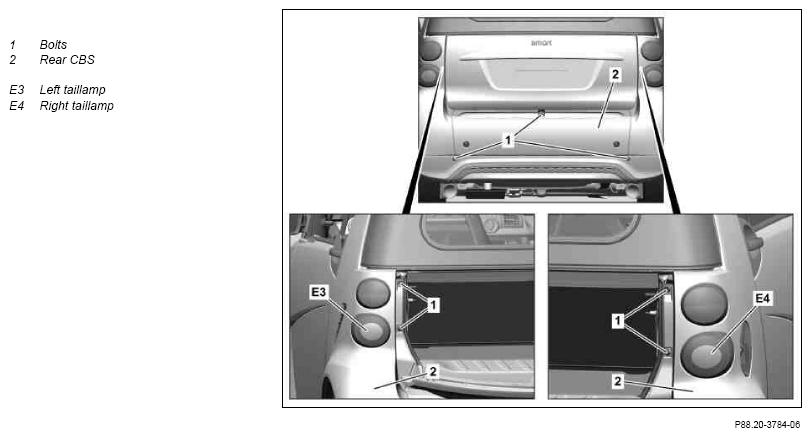

4	Unscrew bolts (1) from rear CBS (2).	Previously unclip covers at the two lower bolts (1) in the rear apron.

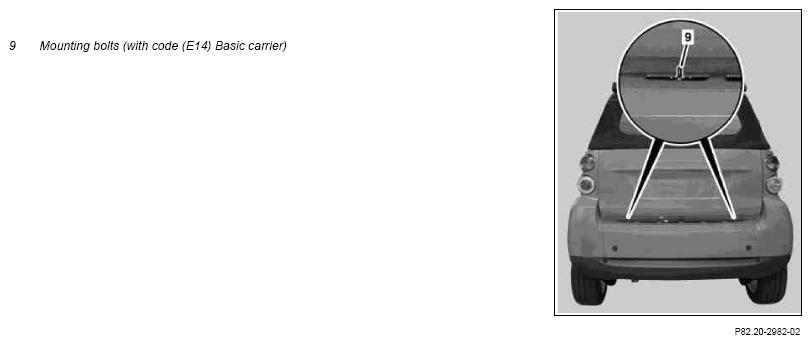

5	Unscrew mounting bolt (9).	With code (E14) Basic carrier

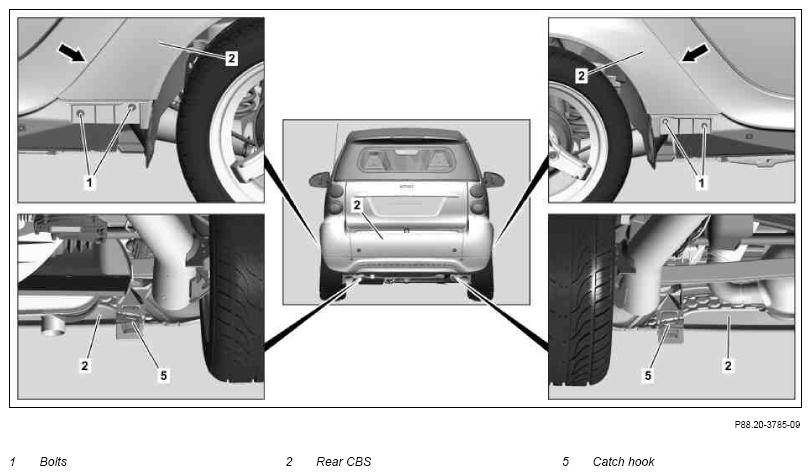

6	Loosen catch hook (5) on left and right bottom on rear CBS (2).
7.1	Open fuel filler flap (4) and unscrew lock (7).	Not on model 451.391/491
7.2	Open charger feed-in socket flap (12)	On model 451.391/491
8	Carefully loosen rear CBS (2) in marked area (arrows) starting at bottom with assembly wedge.	Assembly wedge Slide seal (6) over tank filler neck or charger feed-in socket (X58/23) and align.	Fig 7

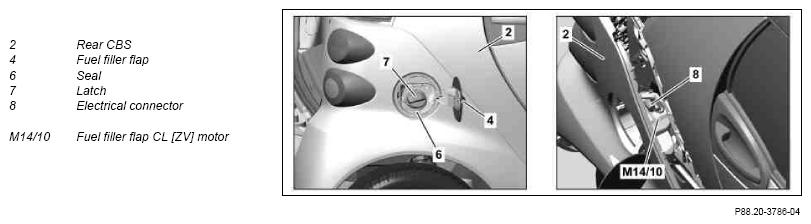

9.1	Slightly pull rear CBS (2) toward outside in area of fuel filler flap (4) and disconnect electrical connector (8) from fuel filler flap CL motor (M14/10)	Not on model 451.391/491

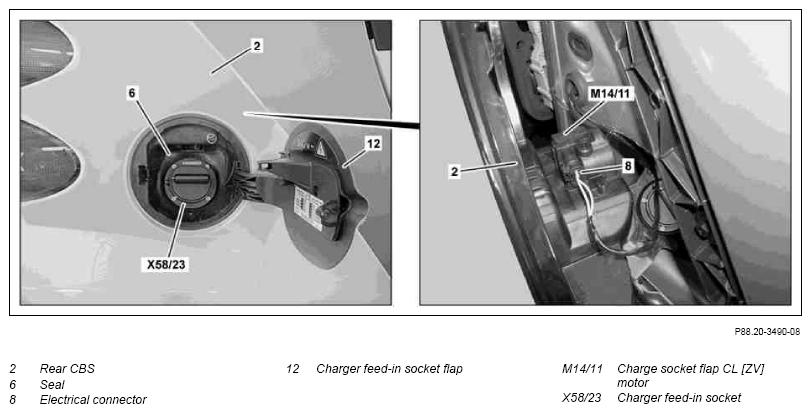

9.2	Slightly pull CBS rear-end (2) toward outside in area of charger feed-in socket flap (12) and disconnect electrical connector (8) from charger feed-in socket motor (M14/11)	On model 451.391/491
10	Close rear-end door
11	Guide rear CBS (2) downward along rear-end door on left.	Carefully remove rear CBS (2). Otherwise, the rear-end door and the rear CBS (2) can be scratched. Aid of helper required.
12	Guide rear CBS (2) downward along rear-end door on right side and remove.	Carefully remove rear CBS (2). Otherwise, the rear-end door and the rear CBS (2) can be scratched. Lay rear CBS (2) down on suitable subsurface. Helper required
13	Loosen latch (7) on fuel filler flap (4) and close tank filler neck	Not on model 451.391/491
14	Install in the reverse order
15	Check left taillamp (E3) and right taillamp (E4) for proper function
