Remove/install longitudinal member panel - AR88.80-P-6000MCC
MODEL 451.3/4

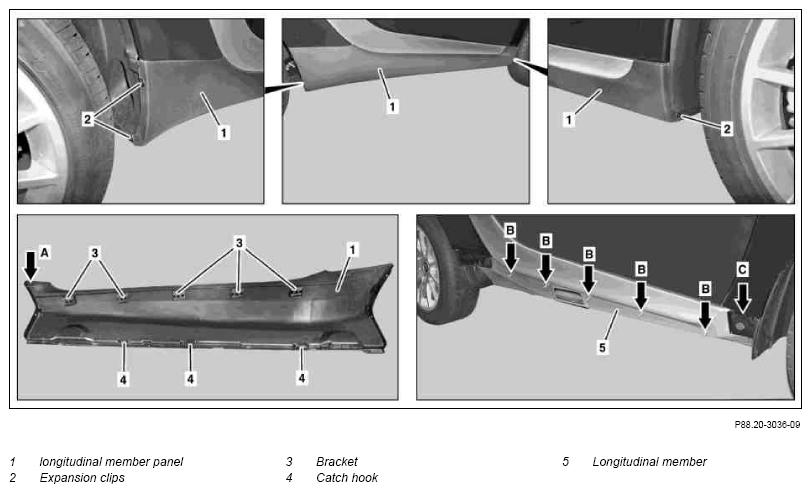

Vehicle up to 30.8.10
Vehicle as of 31.8.10

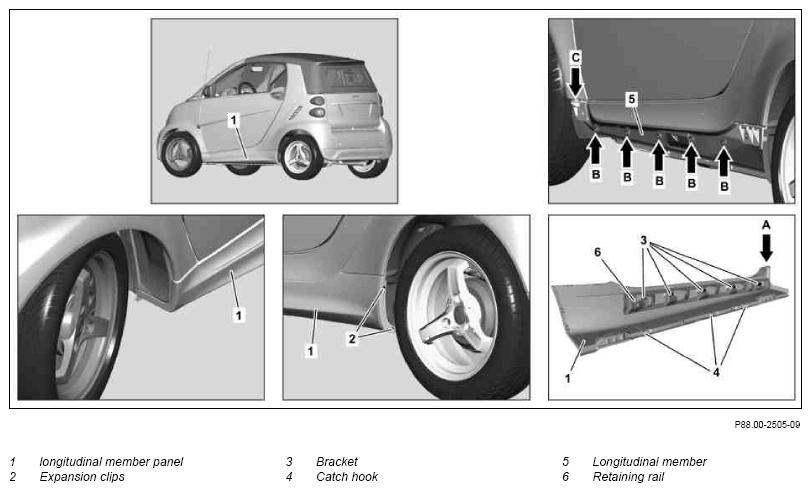

Fig 2: Identifying Longitudinal Member Panel Remove/Install Components - Vehicle As Of 31.8.10 (1 Of 2)

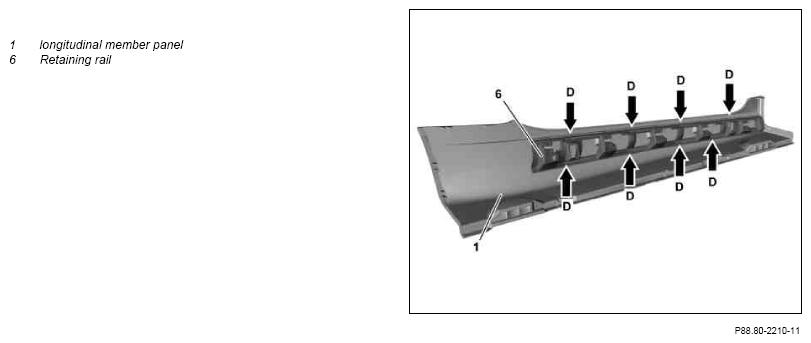

Fig 3: Identifying Longitudinal Member Panel Remove/Install Components - Vehicle As Of 31.8.10 (2 Of 2)
| Remove | |||
| 1 | Remove expansion clips (2) from longitudinal member panel (1). | ||
| 2 | Unclip catch hook (4) on longitudinal member panel (1) from longitudinal member (5). | ||
| 3 | Slightly pull longitudinal member panel (1) toward outside in front area and slide toward rear until bracket (arrow A) separates from guide (arrow C). | ||
| 4 | Slightly pull longitudinal member panel (1) in front area toward outside, slide toward rear and remove. | ||
| 5 | Unscrew brackets (3) still located on the threaded studs (arrows B) on the longitudinal member (5). | ||
| 6 | Unclip retaining rail (6) from catch hook (arrows D) from longitudinal member panel (1) and remove | Vehicles as of 31.8.10 and only when replacing longitudinal member panel (1) | |
| Install | |||
| 7 | Clip retaining rail (6) into catch hooks (arrows D) on longitudinal member panel (1) | Vehicles as of 31.8.10 and only when replacing longitudinal member panel (1) | |
| 8.1 | Insert brackets (3) into guides on longitudinal member panel (1). | Vehicles up to 30.8.10 | |
| 8.2 | Insert brackets (3) into retaining rail (6). | Vehicles as of 31.8.10 | |
| 9 | Insert bracket (arrow A) into guide (arrow C) and clip brackets (3) on longitudinal member paneling (1) into threaded studs (arrows B) on longitudinal member (5). | ||
| 10 | Clip catch hook (4) on longitudinal member panel (1) into longitudinal member (5). | ||
| 11 | Install expansion clips (2) on longitudinal member panel (1). |
