Install side skirts, Brabus - AN88.80-P-0010MCC

MODEL 451.3/4 (except 451.391/491) up to 19.3.12

Shown on right side of vehicle

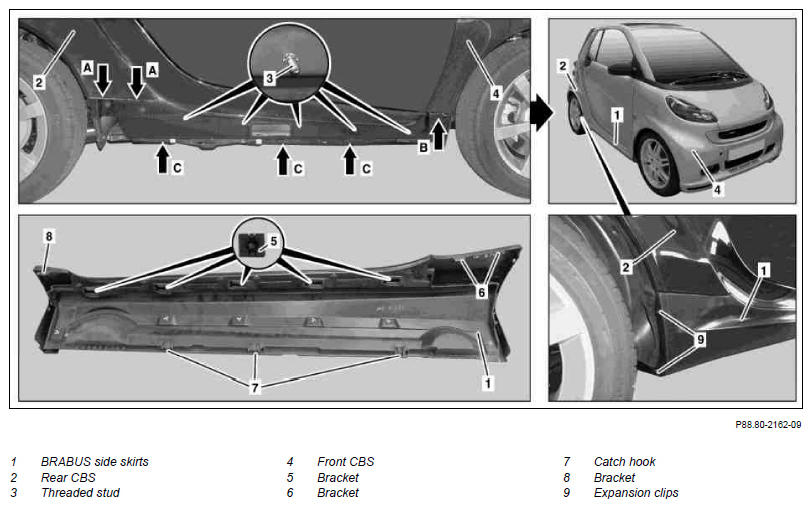

Fig 1: Identifying BRABUS Side Skirts Related Components

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

16.11.11

"Document retrofitted equipment via vehicle documentation (VeDoc)" added

Operation step 8

	Remove
1	Remove left and right longitudinal member paneling		AR88.80-P-6000MCC
	Install
2	Insert bracket (5) into left and right BRABUS side skirt (1)
3	Hook bracket (8) on BRABUS side skirt (1) into guide (arrow B) on CBS front end (4)
4	Clip bracket (5) on BRABUS side skirt (1) into threaded pins (3) on longitudinal member
5	Clip bracket (6) on BRABUS side skirt (1) into guides (arrows A) on CBS rear end (2)
6	Clip catch hook (7) on BRABUS side skirt (1) into longitudinal member in marked areas (arrows C).
7	Install expansion clips (9) at rear on BRABUS side skirt (1)
8	Enter retrofitted equipment in Vehicle Documentation (VeDoc)	Attach note "BRABUS side skirt retrofitted according to AN88.80-P-0010MCC " to field organization texts for design group 88.

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 98	BRABUS side skirts	1
