Remove/install tail lamp - AR82.10-P-4905MCC

MODEL 451.3/4

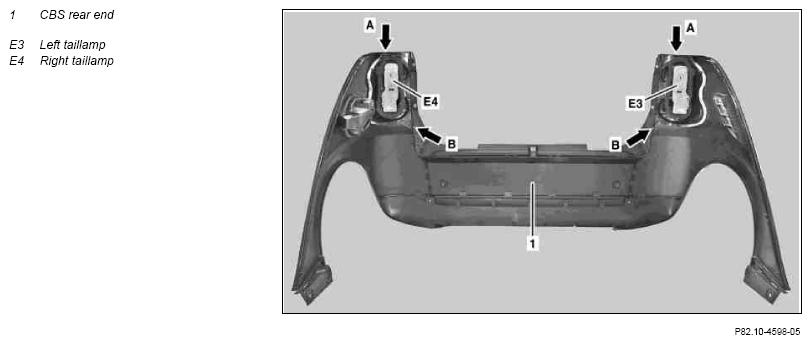

Fig 1: Identifying Tail Lamp Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove CBS rear end (1)		AR88.20-P-1900MCC
2	Detach retaining clip in marked area (arrows A) from CBS rear end (1)
3	Carefully fold down left tail lamp (E3) or right tail lamp (E4), detach from bracket (arrows B) and remove
4	Install in the reverse order
