Remove/install selector lever position indicator - AR26.60-P-0650MCU

TRANSMISSION 717.4 in MODEL 451.3/4

TRANSMISSION 000.001 in MODEL 451.390/490

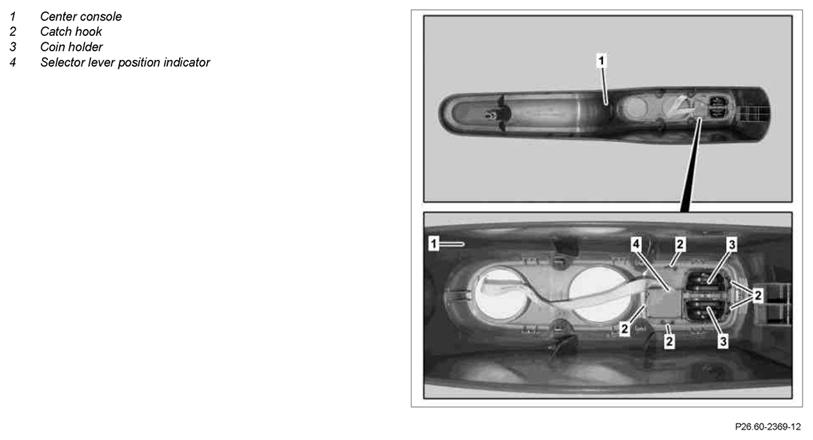

Fig 1: Identifying Selector Lever Position Indicator Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove center console (1)		AR68.20-P-2000MCU
2	Unclip catch hooks (2) of selector lever position indicator (4) and remove selector lever position indicator (4) from center console (1)
3	Unclip coin holder (3) carefully from selector lever position indicator (4) and remove	When replacing selector lever position indicator (4). On model 451.4 there is only one coin holder (3) in the selector lever position indicator (4).
4	Install in the reverse order
