Retrofit smart light alloy wheels - AZ40.10-P-0004MCC

MODEL 451.3 (except 451.39), 451.4 (except 451.49)

without CODE P02 (car2go)

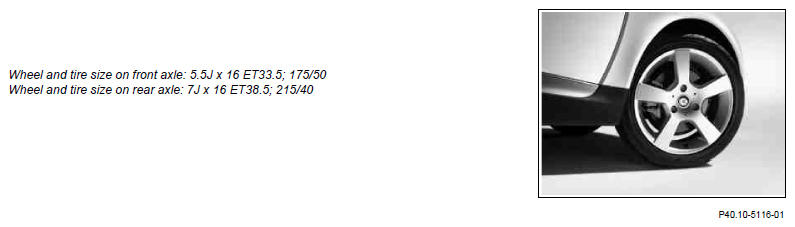

5-spoke light alloy wheels, 16 inch (Design 4) (accessories)

Fig 1: Identifying Smart Light Alloy Wheels - 5-Spoke Light Alloy Wheels, 16 Inch (Design 4)

Courtesy of MERCEDES-BENZ USA

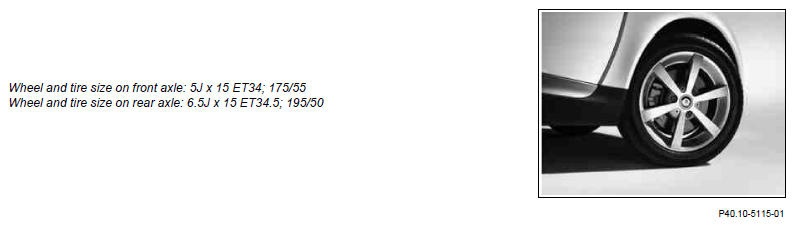

6-spoke light alloy wheels, 15 inch (Design 3) (CODE R74 (6-spoke light alloy wheels 175/55&195/50 R15)) up to 30.8.10

Fig 2: Identifying Smart Light Alloy Wheels - 6-Spoke Light Alloy Wheels, 15 Inch (Design 3)

Courtesy of MERCEDES-BENZ USA

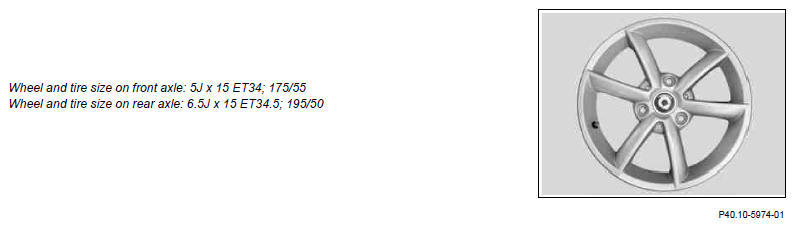

6-spoke light alloy wheels, 15 inch (Design 7) (CODE R22 (6-spoke light alloy wheels 175/55&195/50 R15)) as of 31.8.10

Fig 3: Identifying Smart Light Alloy Wheels - 6-Spoke Light Alloy Wheels, 15 Inch (Design 7)

Courtesy of MERCEDES-BENZ USA

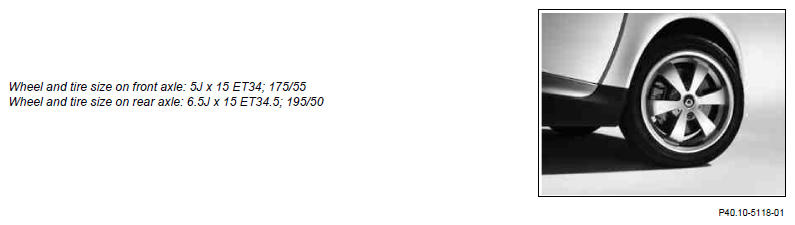

6-spoke light alloy wheels, 15 inch (Design 6) (CODE R67 (6-spoke light alloy wheels 175/55&195/50 R15))

Fig 4: Identifying Smart Light Alloy Wheels - 6-Spoke Light Alloy Wheels, 15 Inch (Design 6)

Courtesy of MERCEDES-BENZ USA

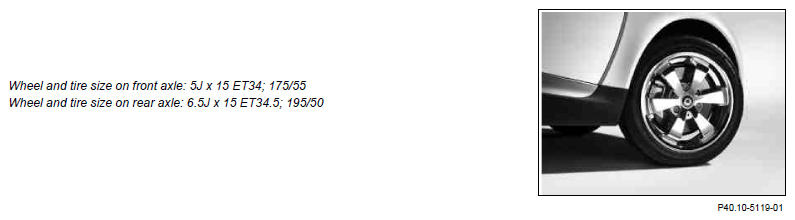

6-spoke light alloy wheels, 15 inch chrome look (Design 6) (CODE R67 (6-spoke light alloy wheels 175/55&195/50 R15))

Fig 5: Identifying Smart Light Alloy Wheels - 6-Spoke Light Alloy Wheels, 15 Inch Chrome Look (Design 6)

Courtesy of MERCEDES-BENZ USA

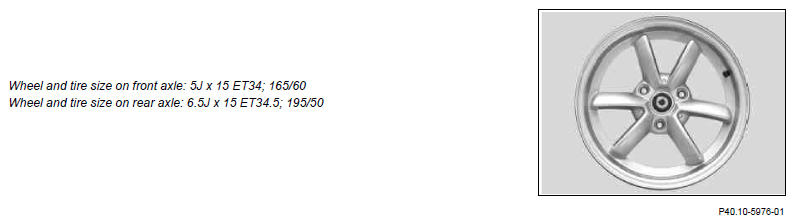

6-spoke light alloy wheels, 15 inch (Design 9) (CODE R23 (6-spoke light alloy wheels 165/60&195/50 R15)) as of 31.8.10 with CODE 494 (USA version)

Fig 6: Identifying Smart Light Alloy Wheels - 6-Spoke Light Alloy Wheels, 15 Inch (Design 9)

Courtesy of MERCEDES-BENZ USA

9-spoke light alloy wheels, 15 inch (Design 5) (CODE R73 (9-spoke light ally wheels 155/60&175/55 R15)) up to 30.8.10

Fig 7: Identifying Smart Light Alloy Wheels - 9-Spoke Light Alloy Wheels, 15 Inch (Design 5)

Courtesy of MERCEDES-BENZ USA

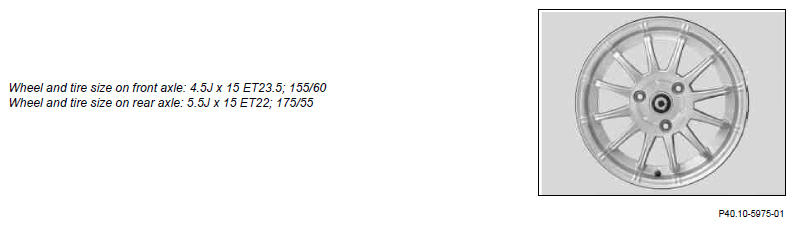

12-spoke light alloy wheels, 15 inch (Design 8) (CODE R24 (12-spoke light alloy wheels 155/60&175/55 R15)) as of 31.8.10

Fig 8: Identifying Smart Light Alloy Wheels - 12-Spoke Light Alloy Wheels, 15 Inch (Design 8)

Courtesy of MERCEDES-BENZ USA

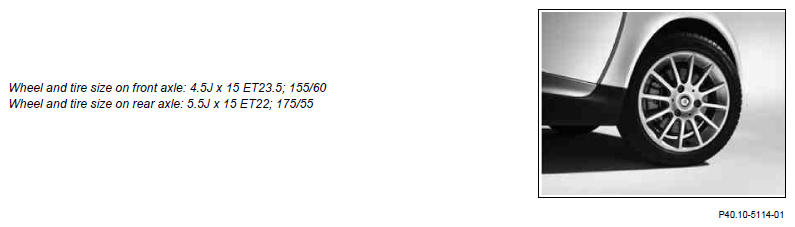

12-spoke light alloy wheels, 15 inch (Design 1) (CODE R72 (12-spoke light alloy wheels 155/60&175/55 R15))

Fig 9: Identifying Smart Light Alloy Wheels - 12-Spoke Light Alloy Wheels, 15 Inch (Design 1)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove wheels
		MODEL 451.3 (except 451.39), 451.4 (except 451.49) without CODE 494 (US version) without CODE P02 (car2go)	AR40.10-P-1100MCC
		MODEL 451.3 (except 451.39), 451.4 (except 451.49) with CODE 494 (US version) without CODE P02 (car2go)	AR40.10-P-1100MCU
	Install
2	Install BRABUS sport suspension	MODEL 451.3 (except 451.39), 451.4 (except 451.49) without CODE 494 (US version) without CODE P02 (car2go) only when retrofitting 5-spoke light alloy wheels, 16 inch (Design 4) with vehicles without Brabus sports suspension.
			AN32.20-P-0002MCC
3	Fit tire on light alloy rim
		MODEL 451.3 (except 451.39), 451.4 (except 451.49) without CODE 494 (US version) without CODE P02 (car2go)	AR40.10-P-1030MCC
		MODEL 451.3 (except 451.39), 451.4 (except 451.49) with CODE 494 (US version) without CODE P02 (car2go)	AR40.10-P-1030MCU
4	Attach light alloy wheels
		MODEL 451.3 (except 451.39), 451.4 (except 451.49) without CODE 494 (US version) without CODE P02 (car2go)	AR40.10-P-1100MCC
		MODEL 451.3 (except 451.39), 451.4 (except 451.49) with CODE 494 (US version) without CODE P02 (car2go)	AR40.10-P-1100MCU
5	Place certificate in vehicle	The expert report is included in the delivery contents.
6	Add special equipment to the vehicle data card and to the online vehicle data card	If 6-spoke light alloy wheels 15" (Design 3, Design 6, Design 7, Design 9) or 9-spoke light alloy wheels 15" (Design 5) or 12-spoke light alloy wheels 15" (Design 1, Design 8) are retrofitted, enter: CODE R67 (6-spoke light alloy wheels 175/55&195/50 R15) CODE R74 (6-spoke light alloy wheels 175/55&195/50 R15) CODE R22 (6-spoke light alloy wheels 175/55&195/50 R15) CODE R23 (6-spoke light alloy wheels 165/60&195/50 R15) CODE R73 (9-spoke light alloy wheels 155/60&175/55 R15) CODE R72 (12-spoke light alloy wheels 155/60&175/55 R15) CODE R24 (12-spoke light alloy wheels 155/60&175/55 R15)

PARTS ORDERING NOTES

Part no.	Designation	Quantity
KG 98	smart light alloy wheels	1
