Remove/install refrigerant line between condenser and front connecting point - AR83.30-P-7816MEX

MODEL 451.390/392/490/492

Shown on model 451.490 with code V03 (Battery cooling system)

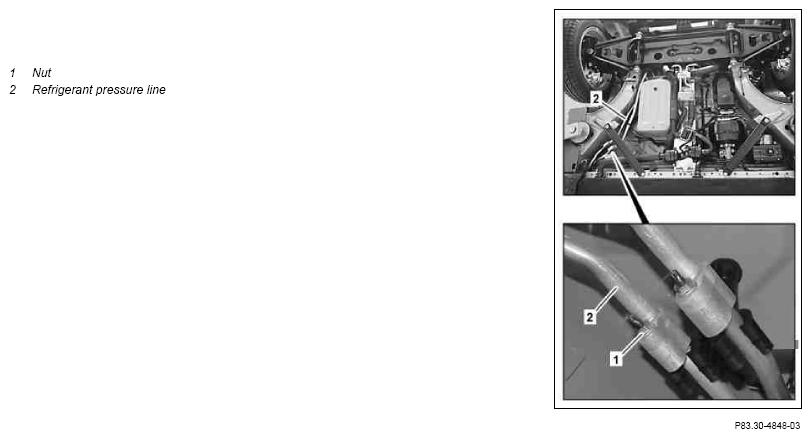

Fig 1: Identifying Refrigerant Line Between Condenser And Front Connecting Point Remove/Install Components (1 Of 2)
G10979060Courtesy of MERCEDES-BENZ USA

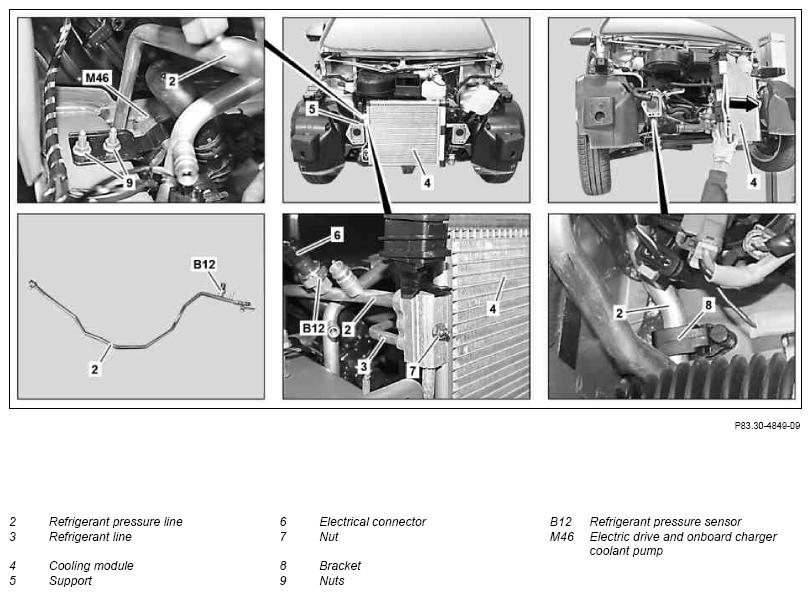

Fig 2: Identifying Refrigerant Line Between Condenser And Front Connecting Point Remove/Install Components (2 Of 2)
G10979061DANGERDANGERNOTESNOTESNOTESNOTESIMPORTANTREMOVINGINSTALLINGINSTALLATION IMPORTANTREFER TO SPECIAL TOOLSDANGERTORQUE SPECIFICATIONREFER TO CAPACITIES & SPECIFICATIONSNOTESINSTALLATION IMPORTANTREFER TO CAPACITIES & SPECIFICATIONSNOTESINSTALLATION IMPORTANTIMPORTANTSPECIAL TOOLIMPORTANTTORQUE SPECIFICATIONCourtesy of MERCEDES-BENZ USA
DANGER Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant. Do not perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. AS83.00-Z-0001-01A
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
NOTES Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
NOTES Procedure for a damaged or leaky air conditioning system   AH83.30-N-0004-01A
NOTES Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
IMPORTANT Notes on handling refrigerant R134a   AH83.30-N-0003-01A
REMOVINGINSTALLING Remove/install
1 Remove transmitter key and mains plug
2 Remove front module   AR62.30-P-1575MCC
3 Drain air conditioning system INSTALLATION IMPORTANT Evacuate air conditioning and then fill it. AR83.30-P-1760MCC
4 Disconnect air conditioning service unit
REFER TO SPECIAL TOOLS 000 588 04 82 00 Air conditioning service unit   WS83.00-P-0031B
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
5 Raise vehicle with vehicle lift
6 Remove front underfloor paneling
7 Remove right diagonal strut Model 451.490/492 AR61.10-P-5138MEV
8 Unscrew nut (1) TORQUE SPECIFICATION Nut to refrigerant line separating point *BA83.55-P-1011-01V
9 Disconnect refrigerant pressure line (2) from rear refrigerant line
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.0) NOTES Close off refrigerant pressure line (2) and rear refrigerant line using suitable stop plugs. Otherwise penetrating dirt and moisture will damage components that are connected to the refrigerant circuit.
INSTALLATION IMPORTANT Replace sealing ring at refrigerant pressure line (2) and moisten with compressor oil when inserting.
MB 362.0 compressor oil A 001 989 08 03
10 Lower vehicle with vehicle lift
11 Release and disconnect electrical connector (6) from refrigerant pressure sensor (B12)
12 Unscrew nut (7)
13 Disconnect refrigerant pressure line (2) and refrigerant line (3) from condenser
REFER TO CAPACITIES & SPECIFICATIONS Compressor oils (specification 362.0) NOTES Close off refrigerant pressure line (2), refrigerant line (3) and connections to condenser using suitable stop plugs. Otherwise penetrating dirt and moisture will damage components that are connected to the refrigerant circuit.
INSTALLATION IMPORTANT Replace sealing rings at refrigerant pressure line (2) and refrigerant line (3) and moisten with compressor oil when inserting.
MB 362.0 compressor oil A 001 989 08 03
14 Remove mount (5) and swivel right front cooling module (4) outwards in direction of arrow IMPORTANT For the next steps, a helper is required to hold the cooling module (4).
    SPECIAL TOOL Mounting fixture Figure
15 Release and disconnect electrical connector from electric drive coolant pump and on-board charger (M46)
16 Unscrew nuts (9) and remove electric drive coolant pump and on-board charger (M46) and put to one side IMPORTANT If necessary, secure electric drive coolant pump and on-board charger (M46) with cable ties.
17 Open bracket (8), remove refrigerant pressure line (2) and unscrew bracket (8)
18 Remove refrigerant pressure line (2) towards the front top
19 Unscrew refrigerant pressure sensor (B12) When replacing refrigerant pressure line (2).
    TORQUE SPECIFICATION Refrigerant pressure sensor to AC line *BA83.30-P-1001-01L
20 Install new desiccant cartridge   AR83.30-P-6525MCC
21 Install in the reverse order
AIR CONDITIONING

Number Designation MODEL 451.3/4 except 451.390/490 Model 451.390/490
BA83.30-P-1001-01L Refrigerant pressure sensor to AC line Nm 10 10
REFRIGERANT COMPRESSOR

Number Designation Engine 780.993
BA83.55-P-1011-01V Nut to refrigerant line separating point Nm 11
Fig 3: Identifying Mounting Fixture (451 589 01 31 00)
G10978229Courtesy of MERCEDES-BENZ USA
