Remove/install diagonal strut - AR61.10-P-5138MEV
MODEL 451.49
MODEL 451.491
MODEL 451.490
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on high-voltage battery | AH54.10-P-0006-01MEV | ||
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Remove/install | |||
1 |
Risk of death
caused by vehicle slipping or toppling off of the lifting platform. Raise vehicle using the vehicle lift and remove underfloor paneling |
Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A |

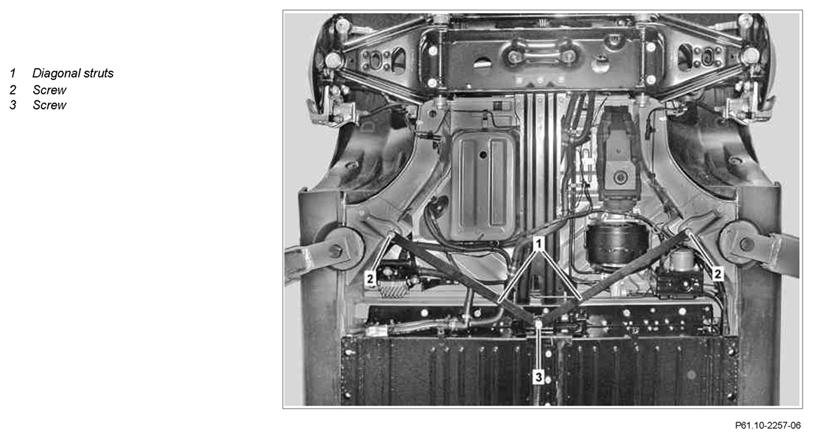

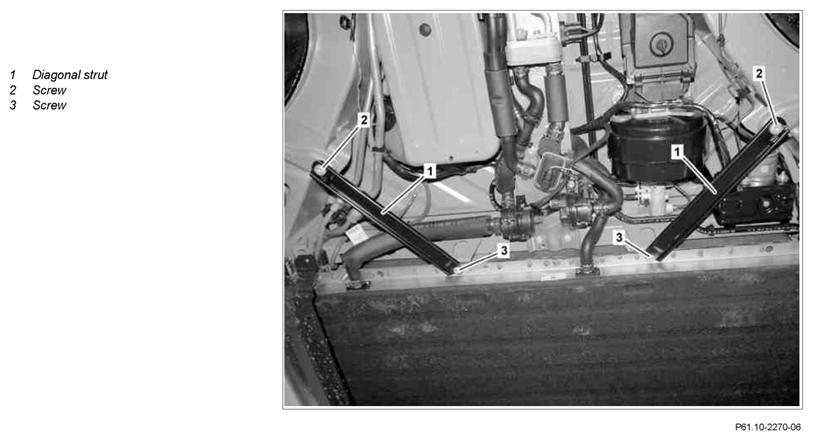

| 2 | Remove bolts (3) | *BA61.25-P-1004-01B | |
| 3 | Unscrew bolts (2) and remove diagonal struts (1) | *BA61.25-P-1002-01B | |
| 4 | Install in the reverse order |
UNDERBODY FRAME
| Number | Designation | Model 451.491 | Model 451.490/492 | |
|---|---|---|---|---|
| BA61.25-P-1002-01B | Bolt, diagonal strut to underbody | Nm | 65 | 65 |
UNDERBODY FRAME
| Number | Designation | Model 451.491 | Model 451.490/492 | |
|---|---|---|---|---|
| BA61.25-P-1004-01B | Bolt, diagonal strut on high volt battery | Nm | 65 | 20 |
