Remove/install refrigerant compressor - AR83.55-P-5300MCU

ENGINES 132.910 in MODEL 451.3/4 with CODE (I01) Air conditioning Plus

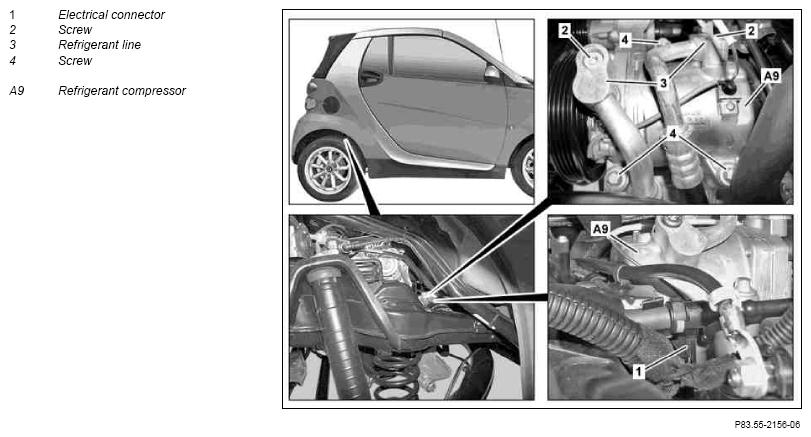

Fig 1: Identifying Refrigerant Compressor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of explosion  caused by welding or soldering work on closed air conditioning system. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with liquid refrigerant.	Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained.	AS83.00-Z-0001-01A
	Procedure for a damaged or leaky air conditioning system		AH83.30-N-0004-01A
	Protect air conditioning circuit and components from moisture when carrying out repair work		AH83.30-N-0005-01A
	Notes on handling R134a refrigerant		AH83.30-N-0003-01A
1	Drain air conditioning system	Evacuate air conditioning and then fill.	AR83.30-P-1760MCC
2	Disconnect fully automatic air conditioning service station	Air conditioner service unit R134a
3	Lower rear drive module		AR01.00-P-3050MCU
4	Remove poly-V belt for refrigerant compressor (A9)		AR13.21-P-1202MCU
5	Detach electrical connector (1) for refrigerant compressor (A9)
6	Remove bolts (2), place refrigerant lines (3) to one side and remove seal rings of refrigerant lines (3)	Close off refrigerant lines (3) and refrigerant compressor (A9) using appropriate stop plugs, as otherwise any penetrating dirt and moisture damages components that are connected to the refrigerant circuit. Replace sealing rings at refrigerant lines (3) and coat with compressor fluid when inserting.
			*BA83.55-P-1003-01V
7	Unscrew screws (4) from refrigerant compressor (A9)		*BA83.55-P-1001-01V
			*BA83.55-P-1002-01V
8	Remove refrigerant compressor (A9)
9	Remove filter dryer	Always replace the filter drier after opening the refrigerant circuit	AR83.30-P-6525MCC
10	Install in the reverse order
