Remove/install actuator motor for fresh and recirculated air flaps - AR83.10-P-2001MCU

MODEL 451.3/4 with CODE (I01) Air conditioning Plus

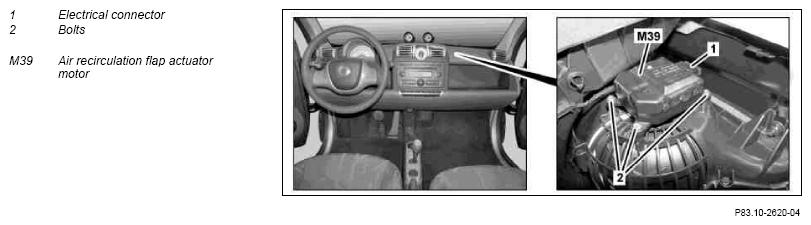

Fig 1: Identifying Actuator Motor For Fresh And Recirculated Air Flaps Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove top part of instrument panel		AR68.10-P-1020MCU
2	Disconnect electrical connector (1) from air recirculation flap actuator motor (M39)
3	Remove bolts (2) and remove air recirculation flap actuator motor (M39)
4	Install in the reverse order
5	Carry out function test on air recirculation flap actuator motor (M39)
