Remove/install dashboard top section - AR68.10-P-1020MCU
MODEL 451.3/4
Shown on model 451.3
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and ETR units | AH91.00-P-0002-01SM | ||
| Notes on avoiding damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Disconnect ground line of battery | AR54.10-P-0003MCC | |
| 2 | Remove paneling on passenger side | AR68.10-P-1502MCU | |
| 3 | Remove instrument cluster | AR54.30-P-6015MCU | |

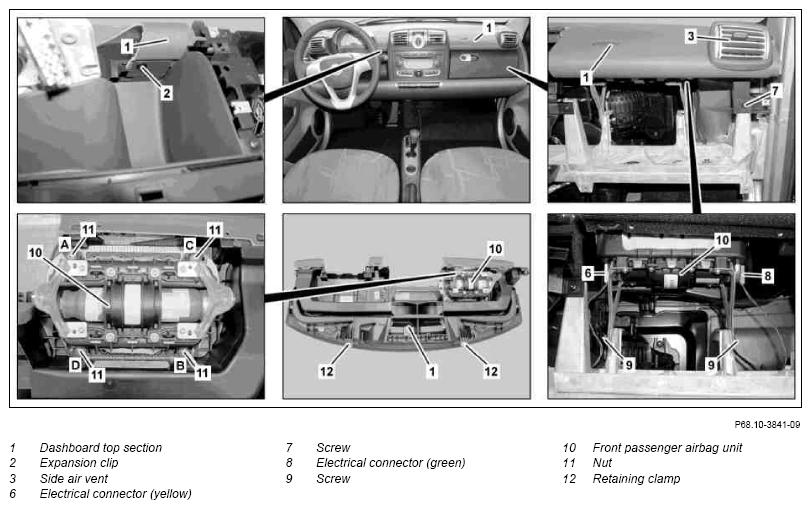

| 4 | Remove bolt (13) in area of instrument panel opening. | ||
| 5 | Detach bracket (17) on wiring harness | ||
| 6 | Remove left side paneling (4) | AR68.10-P-1503MCU | |
| 7 | Remove left side air vent (3). | On vehicles up to 30.8.10 or with code (P02) car2go with instrument panel up to production date 30.8.10. | AR68.10-P-1100MCC |
| 8.1 | Remove bolt (5) behind left side air vent (3). | On vehicles up to 30.8.10 or with code (P02) car2go with instrument panel up to production date 30.8.10. | |
| 8.2 | Unscrew bolt (5.1) at side of instrument panel upper section (1) | On vehicles as of 31.8.10 without code (P02) car2go. | |
| 9.1 | Remove additional instrument | On vehicles up to 30.8.10 with code (V31) cockpit clock and tachometer package or with code (P02) car2go with instrument panel up to production date 30.8.10. with code (V31) package cockpit clock and tachometer. | AR54.30-P-6080MCC |
| 9.2 | Separate additional instruments connector (A15x1) | On vehicles as of 31.8.10 with code (V31) cockpit clock and tachometer package without code (P02) car2go. | |
| 10 | Remove center air vent | Vehicles up to 30.8.10 or with code (P02) car2go with instrument panel up to production date 30.8.10. | AR68.10-P-1150MCU |
| Vehicles as of 31.8.10 without code (P02) car2go. | AR68.10-P-1150MCF | ||
| 11 | Remove tweeter and lay down to side with electrical lines connected | Vehicles up to 30.8.10 with code (C17) Sound package (2 tweeters, 2 bass reflex boxes and diplexer) (FFO) or Vehicles with code (C54) Sound system 2. | AR82.62-P-1000MCC |
| 12 | Disconnect electrical connector (green) (8) and electrical connector (yellow) (6) on front passenger airbag unit (10) | ||
| 13 | Remove screws (9) from passenger airbag (10) | *BA91.60-P-1001-01C | |
| 14 | Remove bolt (7) from dashboard top section (1). | ||
| 15 | Remove expansion clips (2) from dashboard top section (1) in area of instrument cluster. | ||

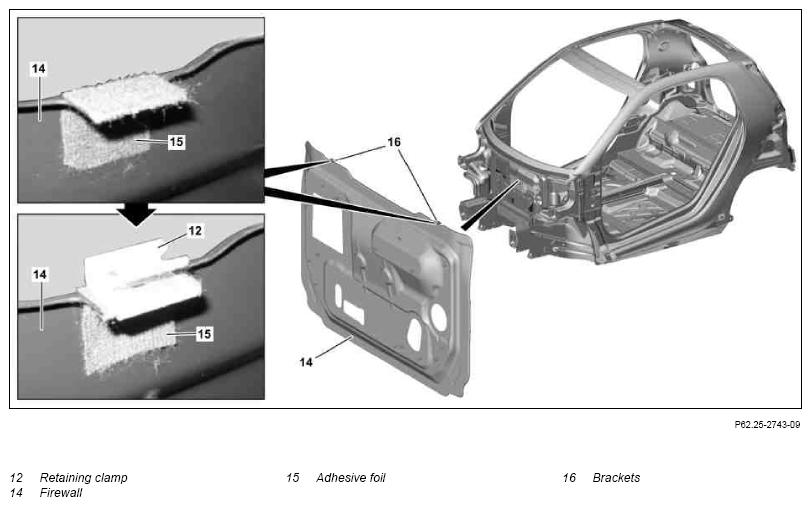

| 16 | Lift dashboard top section (1) with aid of helper, guide toward rear and remove from vehicle. | Remove retaining clips (12) from instrument panel upper section (1) and insert brackets (16) into firewall (14). Ensure that retaining clips (12) are seated correctly in brackets (16). The instrument panel upper section (1) should arrest correctly in the retaining clamps (12) on the firewall (14) when installing. |
|
| 17 | Unscrew nuts (11) from front passenger airbag (10) and remove front passenger airbag (10) downward. | When replacing dashboard top section (1). |
|
| *BA91.60-P-1004-01C | |||
| 18 | Remove all sheet metal nuts and retaining clamps from dashboard top section (1) | When replacing dashboard top section (1). | |
| 19 | Remove additional instrument | On vehicles as of 31.8.10 with code (V31) cockpit clock and tachometer package without code (P02) car2go when replacing instrument panel top section (1). | AR54.30-P-6080MCF |
| 20 | Remove right side air vent (3). | On vehicles up to 30.8.10 or with code (P02) car2go with instrument panel up to production date 30.8.10 when replacing instrument panel top section (1). | AR68.10-P-1100MCC |
| 21 | Remove left side air vent (3). | On vehicles as of 31.8.10 without code (P02) car2go when replacing instrument panel top section (1). | AR68.10-P-1100MCC |
| 22 | Unclip GPS antenna from instrument upper section (1) | On vehicles as of 31.8.10 with code (527) Radio High-Line when replacing instrument panel upper section (1). | |
| 23 | Install in the reverse order |
AIRBAG
| Number | Designation | Model 451.3 | Model 451.4 | |
|---|---|---|---|---|
| BA91.60-P-1001-01C | Bolt of front passenger airbag unit to dashboard mounting | Nm | 10 | 10 |
| BA91.60-P-1004-01C | Nut, front passenger airbag unit to dashboard | Nm | 2 | 2 |
