Perform delivery and hand-over inspection - AP00.20-P-1100B

MODEL 117, 156, 166, 172, 176, 190, 197.3/4, 204, 205, 207, 212, 216, 217, 218, 221, 222, 231, 242, 246, 461, 463

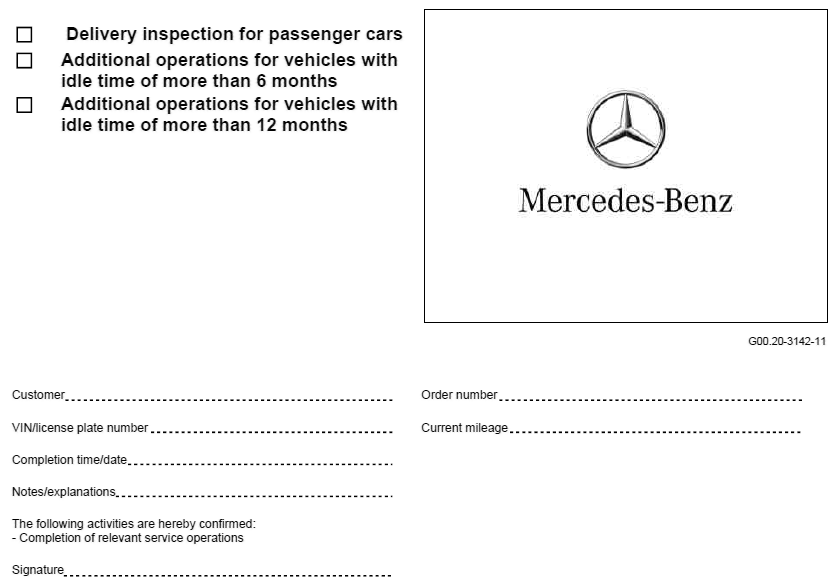

Fig 1: Delivery Inspection Work Sheet For Passenger Cars

Courtesy of MERCEDES-BENZ USA

A	Z6	Z12		Input condition not OK:	ⓧ
Completed
			General
□			The car delivery inspection can be found on the information and communications platform (I & C platform)	----------
				For Germany only Under "Find", please enter the term "Delivery inspection". All documents with a green box are valid. Otherwise, the vehicle-specific delivery inspection cannot be performed properly and this can result in material damage. To be performed by the service advisor.  Only carry out delivery inspection shortly before vehicle handover.
□			Check vehicle for open service measures	----------	◦
				To be performed by the service advisor.  If there are problems: ↓ Subject to separate repair order, perform all open service measures.
□			Confirm verification of delivery inspection in DSB (Digital Service Booklet)	----------
				Only in markets with DSB To be performed by the service advisor.
□			If the vehicle needs to be moved, pay attention to engine and transmission operation	----------	◦
				If there are problems: ↓ Subject to separate repair order, perform fault detection and extended diagnosis.
			Vehicle exterior, body (cleaned, transport protection removed)
□			Check condition of wiper blades and wiping pattern	----------	◦
						AP82.30-P-8253G
				If there are problems: ↓ Rectify problem subject to separate repair order.
□			Remove protective foil for maintenance indicator from wiper blade	----------
				Vehicle with maintenance indicator on wiper blade.
						AP82.30-P-8253G
			Engine compartment
□			Check engine oil level	----------	◦
				Engine 112, 113, 133, 152, 156, 157, 159, 177, 178, 270, 271, 272, 273, 274, 275, 276, 277, 278, 279, 607, 612, 626, 628, 629, 642, 646, 651		AP18.00-P-1848U
□			Check coolant level in coolant expansion reservoir	----------	◦
						AP20.30-P-2049U
□			Windshield washer system - Check fluid level	----------	◦
				MODEL 117, 156, 166, 172, 176, 190, 197.3/4, 204, 205, 207, 212, 216, 217, 218, 221, 222, 231, 242, 246		AP82.35-P-8249U
				MODEL 461, 463		AP82.35-P-8210G
□			Check all visible parts in engine compartment for damage and leaks	----------	◦
				MODEL 117, 156, 176, 242, 246		AP00.20-P-0055AK
				MODEL 166, 172, 197.3/4, 204, 207, 212, 216, 218, 221, 231		AP00.20-P-0055EW
				MODEL 190		AP00.20-P-0055B
				MODEL 205		AP00.20-P-0055C
				MODEL 217, 222		AP00.20-P-0055A
				MODEL 461, 463		AP00.20-P-0053AB
			Tires, brakes
□			Check tire pressure and correct if necessary; enter measurement values in table	----------	◦
				Except spare wheel MODEL 117, 156, 166, 172, 176, 190, 197.3/4, 204, 205, 207, 212, 216, 217, 218, 221, 222, 231, 242, 246		AP40.15-P-4061A
				MODEL 461, 463		AP40.15-P-4060G
□			Assess condition of brake disks and enter evaluation in table	----------	◦
						AP42.10-P-4249U
□			Tighten wheel bolts	----------
				Only on MODEL 461, 463
□			Attach hubcaps	----------
				Vehicles with hubcaps Check for correct positioning of hubcap to valve and for correct seating. Otherwise the valve will be damaged or the hubcap will be lost which could then cause material damage.
			Underside of vehicle
□			Remove suspension travel limiter	----------
				If present
				MODEL 190		AP32.25-P-3270A
			Vehicle interior
□			Confirmation of vehicle handover in instrument cluster	----------
□			Check time setting of clock; adjust if necessary	----------	◦
□			Read out map data release from navigation system, check update and enter data in table	----------	◦
						AP82.85-P-8249U
				With map data release that is not up to date: ↓ Subject to separate repair order, perform update of the map data release.
□			Check horn for proper operation	----------	◦
□			Check warning and function indicator lamps in instrument cluster	----------	◦
						AP54.30-P-5449U
□			Check status of high-voltage battery on additional instrument display	----------	◦
				MODEL 242.890 The ground line of the 12V battery must not be disconnected. Otherwise high-voltage battery balancing will not be performed. Enter state of charge of high-voltage battery here: _________________ If the state of charge of the high-voltage battery is below 50 % or under on the display. ↓ The high-voltage battery must be fully charged.
			Transport mode
□			Deactivate transport mode and enter remaining service life/standby of battery in table	----------	◦
				On vehicles with activated transport mode
				MODEL 117, 156, 166.8, 176, 190, 205, 217, 218.9, 222, 231, 242 MODEL 166.0, 172, 204, 207.3/4, 212, 218.3, 246 as of model year 2013		AR54.00-P-0001A
□			Check charge level of on-board electrical system battery by means of instrument cluster	----------	◦
				On vehicles without activated transport mode
				MODEL 166, 172, 197.3/4, 204, 207, 212, 216, 218, 221, 246 If the 12 V on-board electrical system battery is below the permissible charge level: ↓ Subject to separate repair order, charge the on-board electrical system battery and then perform a Midtronics test.		AR54.10-P-1132A
			Miscellaneous
□			Enter any other faults in table	----------	◦
			Additional operations with idle time of more than 6 months
	□		Replace brake fluid	----------
				MODEL 117, 156, 176, 242, 246		AP42.00-P-4280AK
				MODEL 166		AP42.00-P-4280GZ
				MODEL 172, 231		AP42.00-P-4280V
				MODEL 190		AP42.00-P-4280B
				MODEL 197		AP42.00-P-4280RQ
				MODEL 204, 205, 207, 212, 218		AP42.00-P-4280EW
				MODEL 216, 221		AP42.00-P-4280SX
				MODEL 217, 222		AP42.00-P-4280HA
				MODEL 461, 463		AP42.50-P-4280G
			Additional operations with idle time of more than 12 months
		□	Replace AdBlue®	----------
				Vehicles with AdBlue®
				MODEL 166 with ENGINE 642, 651 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))		AR14.40-P-2014-02GQ
				MODEL 205 with ENGINE 651 with CODE U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02LWB
				MODEL 207 with ENGINE 642 with CODE U77 (Diesel Emission control BLUETEC (SCR)) MODEL 207 with ENGINE 651 with CODE U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02ECM
				MODEL 212, 221 with ENGINE 642 with CODE U42 (BlueTEC diesel exhaust treatment (SCR))		AR14.40-P-2014-02GZB
				MODEL 222 with ENGINE 642 with CODE U77 (Diesel Emission control BLUETEC (SCR))		AR14.40-P-2014-02LF
				MODEL 463.306/336/346 with ENGINE 642		AR14.40-P-2014-02G
