Winter Inspection - AP00.20-P-0082B

MODEL 451, 453

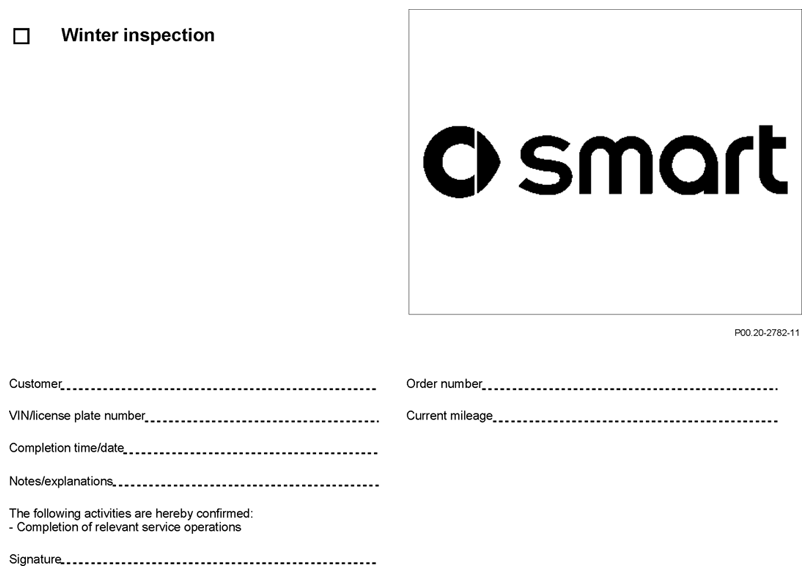

Fig 1: Stock Maintenance Sheet - Winter Inspection

Courtesy of MERCEDES-BENZ USA

		Input condition not OK:	ⓧ
Completed


□	Brake system Perform brake test and enter the result in the table	...	◦	AP42.00-P-4290MCC
□	Vehicle exterior Check condition of vehicle exterior	...	◦
		MODEL 451, 453 MODEL 453	◦	AP60.00-P-0050S
□	Check condition of windshield	...	◦	AP67.10-P-6750A
□	Check condition of wiper blades	...	◦
		MODEL 451, 453 MODEL 453		AP82.30-P-8253G
□	Front flap Brake system: Check fluid level	...	◦	AP42.10-P-4247US
□	Check coolant level	...	◦
		MODEL 451, 453 MODEL 453		AP20.30-P-2050S
□	Windshield washer system: check/correct fluid level	...		AP82.35-P-8249US
		Use summer/winter cleaner depending on season.
□	Battery Check condition of battery	...	◦	AP54.10-P-5449US
□	Vehicle front end, vehicle rear end Check exterior lights for proper operation	...	◦
		MODEL 451, 453 MODEL 453		AP82.10-P-8252EW
□	Vehicle interior Check function of windshield wipers and windshield washer system	...	◦	AP82.35-P-8252MCC
□	Check TIREFIT tire sealant	...	◦	AP40.10-P-4054MCC
		Enter TIREFIT expiration date here: If the TIREFIT expiration date has been reached: ↓ Replace TIREFIT, invoice as additional operation.
□	Engine compartment Check all visible parts in engine compartment for damage and leaks	...	◦
		MODEL 451, 453 MODEL 453		AP00.20-P-0055S
□	Check/correct engine oil level	... ENGINE 132, 281, 660	◦	AP18.00-P-1811MS
□	Underside of vehicle Check condition of vehicle underside	...	◦
		MODEL 451, 453 MODEL 453		AP60.00-P-0051S
□	Tires, wheels Correct tire pressure and enter set tire pressure in the table	...	◦	AP40.15-P-4061MCC

BRAKE VALUES

	Left	Right
Front
Rear
Parking brake

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle
bar/psi
